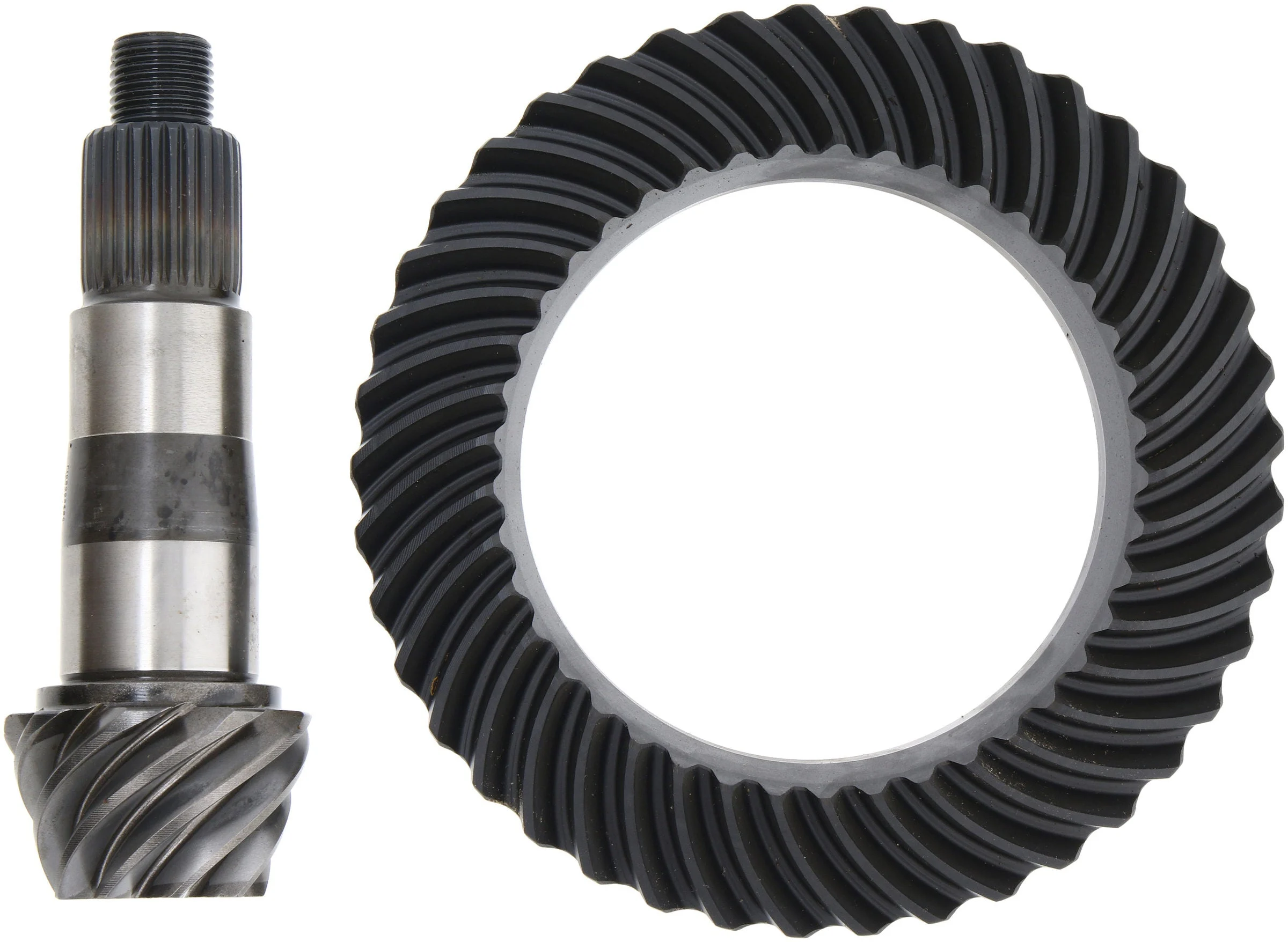

Spicer 10050939 – Differential Ring and Pinion – DANA 44 AdvanTEK – Front 4.56 Ratio

Description

Spicer 10050939 – Differential Ring and Pinion – DANA 44 AdvanTEK – Front 4.56 Ratio

Differential Ring and Pinion – DANA 44 AdvanTEK – Front 4.56 Ratio

For vehicles that require extreme performance, Spicer gearing offers strength that can not be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.

• Superior Metallurgy: Ensures more consistent, higher quality product.
• Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life.
• Precision Heat-treating and Shot-peening: Delivers consistent quality, enhanced life by reducing residual stress and exceptional durability.
• All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.

Axle Model: DANA 44 AdvanTEKGear Ratio: 4.56Ring Teeth Count: 41Carrier Breaks: 3.07 And UpCover Bolt Quantity: 12Include Installation Kit: NOn Vehicle Location: FrontPinion Gear Tooth Quantity: 9Pinion Shaft Diameter: 1.750Pinion Spline Count: 28Ring Gear Bolt Qty: 10Ring Gear Bolt Thread In.: M12 X 1.25Ring Gear Diameter (In.): 8.270Ring Gear Rotation: ReverseAxle Type: M210New Or Remanufactured: NewShims Included: NPinion Gear Included: YRing Gear Included: YPinion Nut Included: N
