Quick Fuel Technology 30-900QFT – Fuel Pressure Regulator

Description

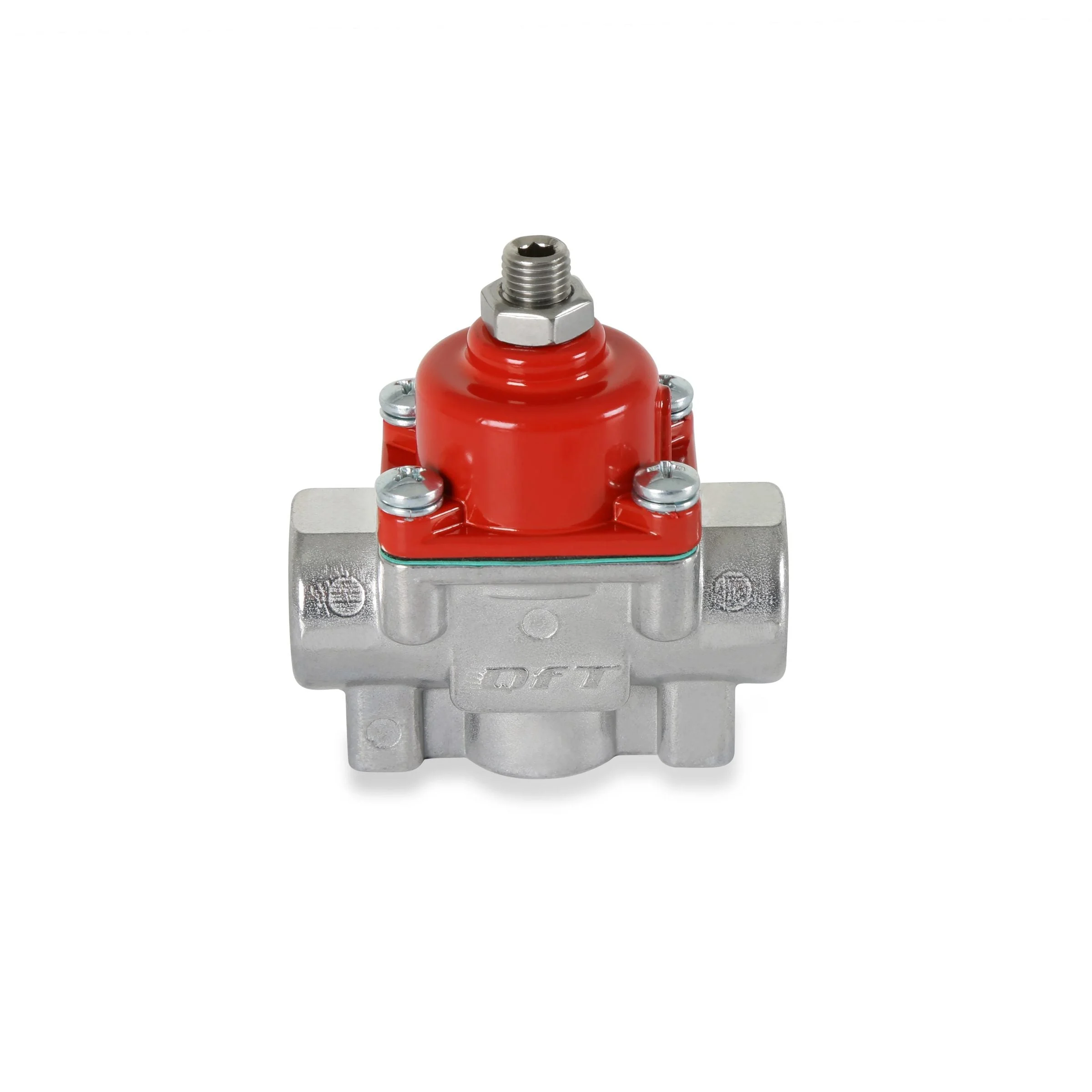

Quick Fuel Technology 30-900QFT – Fuel Pressure Regulator

Fuel Pressure Regulator – 4-1/2 to 9 psi – In-Line – 3/8 in NPT Female Inlet – 3/8 in NPT Female Outlet – 3/8 in NPT Female Return – Bypass – Aluminum – Red / Natural – E85 / Gas / Methanol – Each

Fuel Pressure Regulator; Bypass Regulator; 4.5-9 psi. 3/8 NPT Ports; Cast Body w/Red Top;

Bypass Regulator recommended for steady-state mechanical and electric fuel pumps. Comes with stainless mounting bracket. All thread are NPT. Eliminates creep at low RPM without affecting fuel flow Adjustable from 4.5 – 9 PSI; Preset to 6.5 PSI3/8 in. NPT ports.375 in. (3/8 in.) restriction Compatible for use with gas, alcohol and E85 fuels Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1

• Eliminates Creep At Low RPM Without Affecting Flue Flow
• Adjustable From 4.5-9 PSI
• Preset to 6.5 PSI
• .375 in. Restriction
• Compatible For Use With Gas – Alcohol – E85 Fuels

Adjustable: YesBrand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryColor: RedEmission Code: 5Fuel Type: GasolineGauge Included: NoGrade Type: PerformanceInlet Gender: FemaleInlet Port Diameter: 3/8Inlet Port Quantity: 1Inlet Type: NPTMaterial: AluminumMaximum Pressure: 9Minimum Pressure: 4.5Mounting Bracket Included: YesOutlet Gender: FemaleOutlet Port Diameter: 3/8Outlet Port Quantity: 2Outlet Type: NPTpart type: Fuel Pressure RegulatorProduct Type: Fuel Pressure RegulatorStyle: BypassSub Category: CarburetionWarning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
