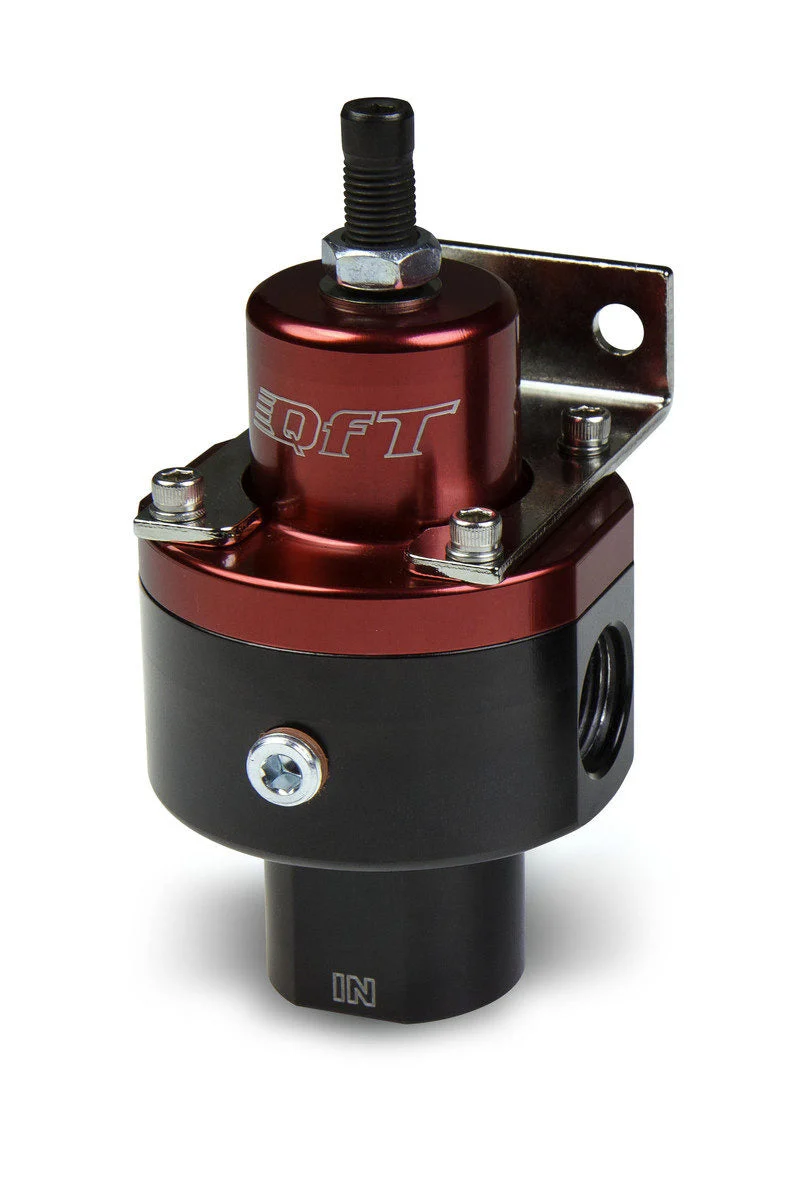

Quick Fuel Technology 30-7025QFT – Fuel Pressure Regulator

Description

Quick Fuel Technology 30-7025QFT – Fuel Pressure Regulator

Fuel Pressure Regulator – 5 to 8 psi – In-Line – 10 AN O-Ring Inlet – Dual 8 AN O-Ring Outlets – 1/8 in NPT Port – Aluminum – Black / Red Anodized – Diesel / Ethanol / Gas / Methanol – Each

Fuel Pressure Regulator; 2 Port; -10AN Inlet And -8 AN Outlets; Adjustable From 5-8 psi.;

2-Port Regulator designed to provide smooth, consistent and repeatable performance. This regulator is machined from aircraft garde billet aluminum and anodized for added durability and reliable performance. Hard-coat anodized billet housing. Supports engines up to 650 HP.#10 AN inlet and #8 AN outlet ports. Adjustable from 5-8 PSI.Fluorocarbon diaphragms and Viton(R) O-rings. Stainless steel pins, brass valve guides, and hard-coat anodized diaphragm plates. Compatible for use with all fuels. Serviced by using 30-7303 Rebuild Kit.

• Hard Coat Anodized Billet Housing
• Supports Engine Over 650 HP
• #10 AN Inlet And #8 AN Outlet Ports
• Adjustable From 5-8 PSI
• Fluorocarbon Diaphragms And Viton® O-Rings
• Stainless Steel Pins
• Hard Coated Anodized Diaphragm Plates
• Serviced By Using 30-7303 Rebuild Kit

Adjustable: YesBrand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryColor: Black / RedEmission Code: 5Fuel Type: GasolineGauge Included: NoGauge Port Included: YesGrade Type: PerformanceInlet Type: 10 AN ORBMaterial: AluminumMaximum Pressure: 8Minimum Pressure: 5Mounting Bracket Included: YesOutlet Port Quantity: 2Outlet Type: 8 AN ORBpart type: Fuel Pressure RegulatorProduct Type: Fuel Pressure RegulatorRebuildable: YesSub Category: CarburetionWarranty: Manufacturer’s Limited 90 Day Warranty
