Quick Fuel Technology 30-454QFT – Mechanical Fuel Pump

Description

Quick Fuel Technology 30-454QFT – Mechanical Fuel Pump

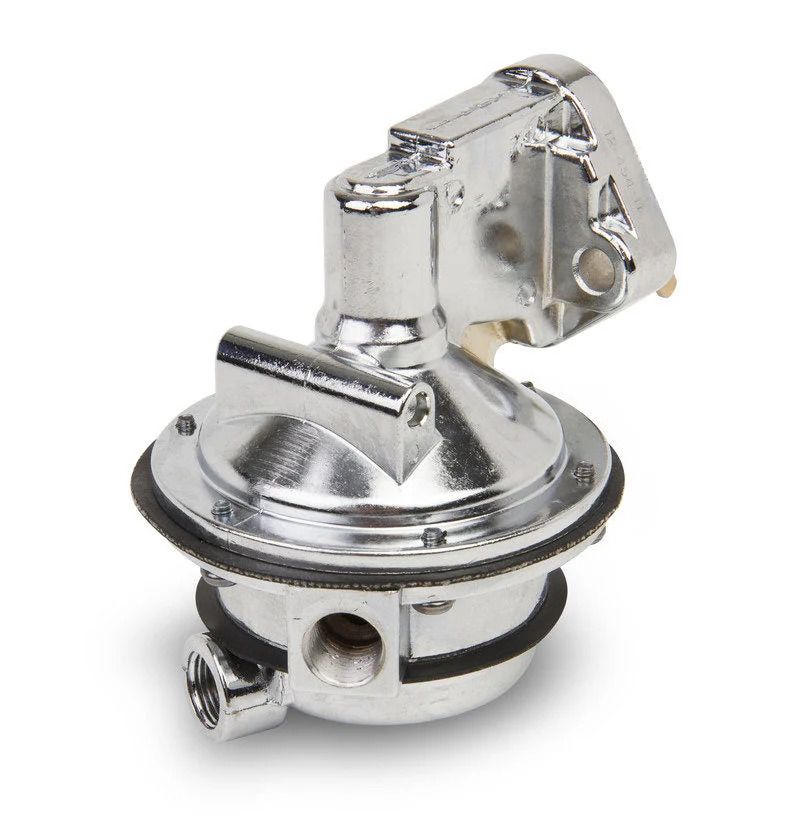

110 GPH Mechanical Fuel Pump (Big Block Chevrolet)

Mechanical Fuel Pump; 110 GPH Flow Rate; 6.5-8 psi. Shutoff Pressure; 3/8 NPT Inlet/Outlet; For Use w/Big Block Chevy;

For the typical street cruiser, its tough to beat the simplicity and reliability of a mechanical fuel pump. Available for small- and big-block Chevy, Chrysler and Ford engines, Quick Fuel Technologys mechanical pumps flow 110 gallons per hour and utilize lightweight aluminum housings. They feature integrated shutoff valves that are preset at 6.5- to 8 psi, eliminating the need for a separate pressure regulator. For added installation flexibility, the pump casting can be rotated to accommodate various plumbing configurations. Designed for carbureted big block Chevy V8 engines. Flows 110 GPH (Free flow).All Aluminum housing for weight savings. Shutoff pressure pre-set from 6.5-8 PSI.Inlet & Outlet tapped for 3/8 in. NPT.Heavy duty construction for continuous high RPM operation. Fuel body castings can be rotated to accommodate various plumbing situations. Fuel pressure regulator is not required.

• Designed For Carbureted Big Block Chevys
• Flows 110 GPH – Free Flow
• All Aluminum Housing For Weight Savings
• Shutoff Pressure Pre-Set From 6.5-8 PSI
• Inlet And Outlet Tapped For 3/8 in. NPT
• Heavy Duty Construction For Continuous High RPM Operating
• Fuel Body Castings Can Be Rotated For Various Plumbing Situations
• Fuel Pressure Regulator Is Not Required

Application: Chevrolet Big BlockAverage Flow Rating: 110Brand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryEmission Code: 5Free Flow GPH: 110Fuel Type: GasolineGrade Type: PerformanceHousing Material: AluminumInlet Quantity: 1Inlet Thread Diameter: 3/8Inlet Type: NPTMaximum Pressure: 8Outlet Quantity: 1Outlet Thread Diameter: 3/8Outlet Type: NPTpart type: Mechanical Fuel PumpProduct Type: Fuel PumpSub Category: Fuel Pumps and Related ComponentsWarning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
