Quick Fuel Technology 30-1899QFT – Fuel Pressure Regulator

Description

Quick Fuel Technology 30-1899QFT – Fuel Pressure Regulator

Fuel Pressure Regulator – 4-1/2 to 9 psi – In-Line – 8 AN Female O-Ring Inlet – 8 AN Female O-Ring Outlet – 8 AN Female O-Ring Return – Bypass – 1/8 in NPT Port – Aluminum – Blue / Clear Anodized – E85 / Gas / Methanol – Each

Fuel Pressure Regulator; Billet Aluminum; For Use w/Mechanical Fuel Pump w/Variable Pressure; By Pass Jet; Blue Anodized Top; 4.5-9 psi. -8AN Inlet/Outlet;

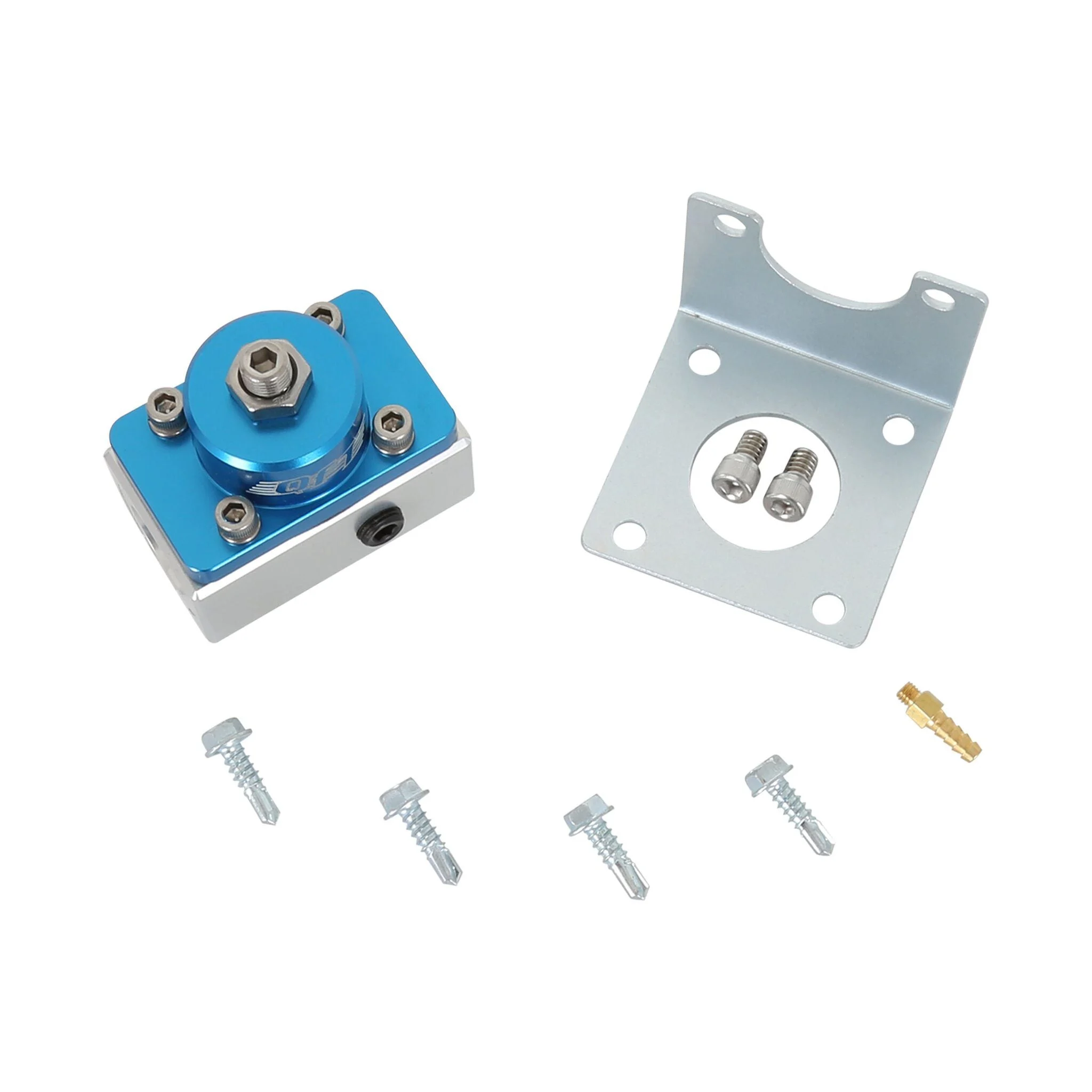

Billet Bypass Regulator W/JET – Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required. Designed to operate within 4.5 – 9 PSI; Preset at 7 PSI.350 in. (7/20 in.) restriction Designed for use with alcohol fuel Compatible with QFT„¢ billet fuel pressure regulator logs Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1

• Designed to operate within 4.5 – 9 PSI; Preset at 7 PSI
• .350″ (7/20″) restriction
• Designed for use with alcohol fuel
• Compatible with QFT™ billet fuel pressure regulator logs
• Boost Reference 1-1
• Includes an 1/8″ NPT port for manifold reference

Adjustable: YesBrand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryEmission Code: 5Fuel Type: GasolineGauge Included: NoGauge Port Included: YesGrade Type: PerformanceInlet Type: 8 AN ORBMaximum Pressure: 9Minimum Pressure: 4.5Mounting Bracket Included: YesOutlet Type: 8 AN ORBpart type: Fuel Pressure RegulatorProduct Type: Fuel Pressure RegulatorRebuildable: YesSub Category: CarburetionVacuum Port Quantity: 1Warning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
