Quick Fuel Technology 30-1803QFT – Fuel Pressure Regulator

Description

Quick Fuel Technology 30-1803QFT – Fuel Pressure Regulator

Fuel Pressure Regulator – 4-1/2 to 9 psi – In-Line – 8 AN Female O-Ring Inlet – 8 AN Female O-Ring Outlet – 1/8 in NPT Port – Aluminum – Black / Clear Anodized – E85 / Gas / Methanol – Each

Fuel Pressure Regulator; Billet Aluminum; For Use w/Fuel Pump That Does Not Need To Be Bypassed; Black Anodized Top; 4.5-9 psi.; -8AN Inlet/Outlet;

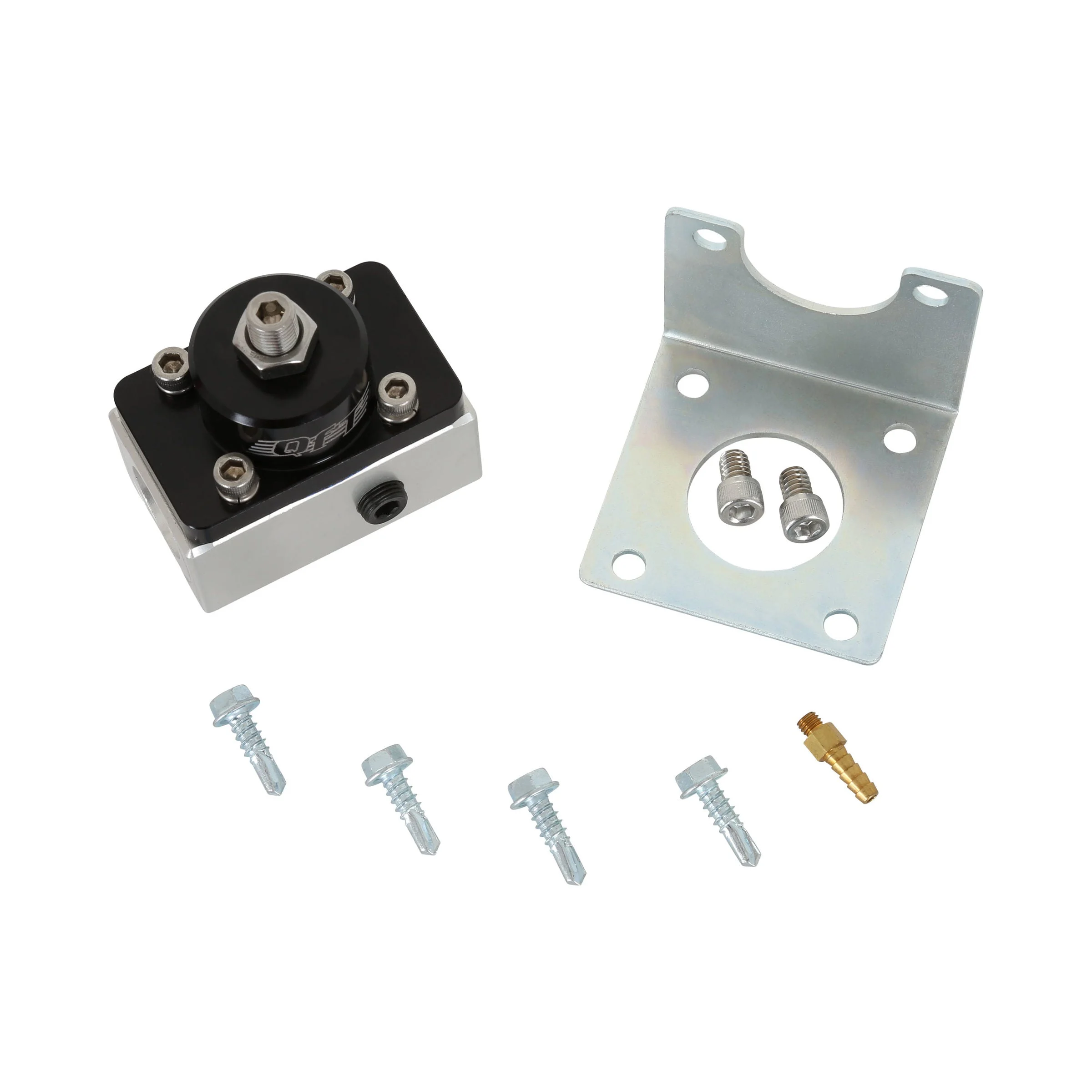

Billet Regulator – Designed for use with a fuel pump that does not need to be bypassed. Black anodized top has a fitting for boost referenced applications and regulator body has port for fuel pressure gauge. Comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required. Designed to operate within 4.5 – 9 PSI; Preset at 7 PSI.250 in. (1/4 in.) restriction Compatible with QFT„¢ billet fuel pressure regulator logs Can be used with gas, alcohol and E85 fuels Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1

• Designed To Operate Within 4.5-9 PSI; 7 PSI Preset
• .250 in. [1/4 in.] Restriction
• Compatible with QFT™ Billet Fuel Pressure Regulator Logs
• Can Be Used With Gas – Alcohol – E85 Fuels

Adjustable: YesBrand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryEmission Code: 5Fuel Type: GasolineGauge Included: NoGauge Port Included: YesGrade Type: PerformanceInlet Type: 8 AN ORBMaximum Pressure: 9Minimum Pressure: 4.5Mounting Bracket Included: YesOutlet Type: 8 AN ORBpart type: Fuel Pressure RegulatorProduct Type: Fuel Pressure RegulatorRebuildable: YesStyle: Boost ReferencedSub Category: CarburetionVacuum Port Quantity: 1Warning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
