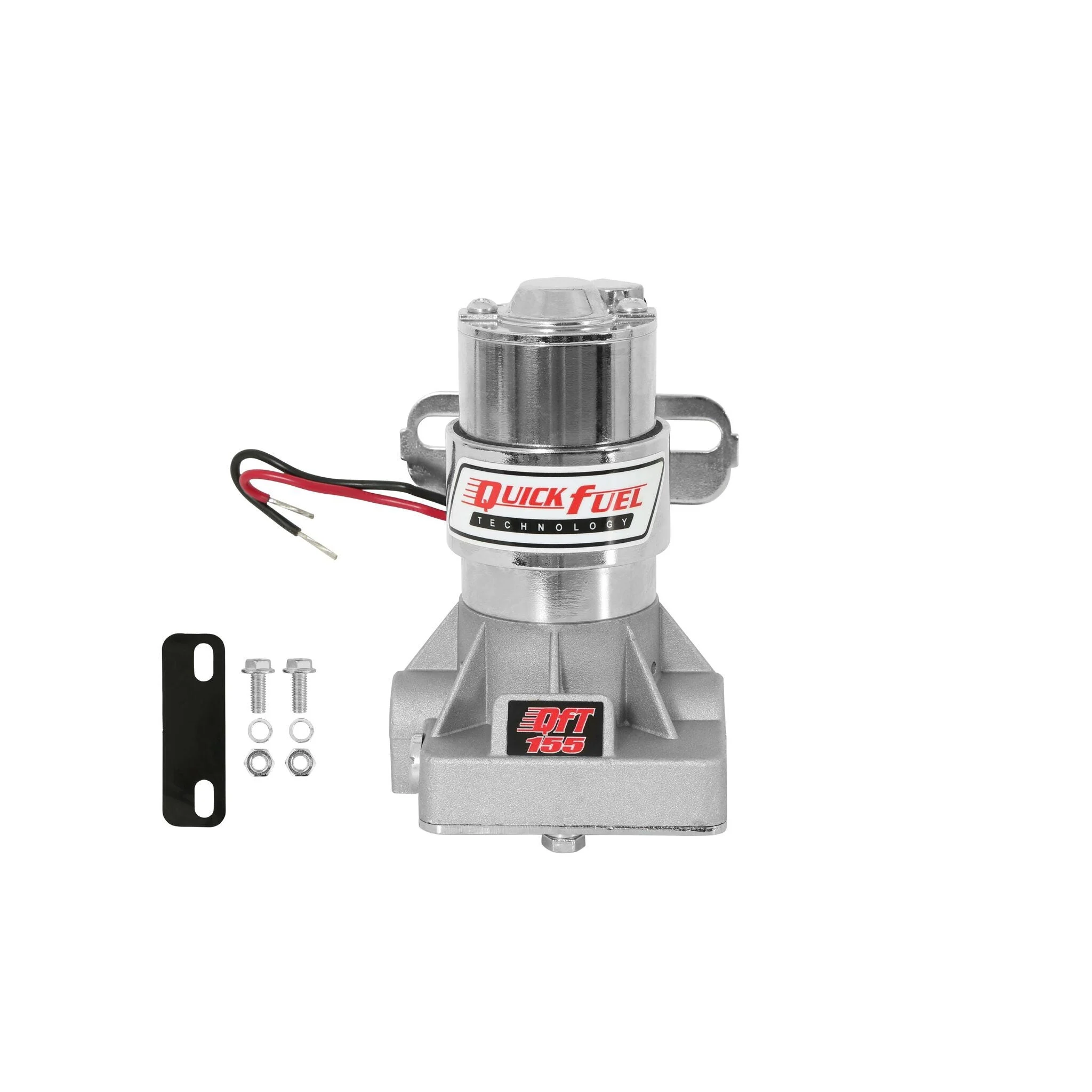

Quick Fuel Technology 30-155QFT – 155 GPH Electric Fuel Pump

Description

Quick Fuel Technology 30-155QFT – 155 GPH Electric Fuel Pump

Fuel Pump – QFT155 – Electric – In-Line – 155 gph at 14 psi – 3/8 in NPT Female Inlet / Outlet – Natural / Zinc Oxide – Gas – Each

Electric Fuel Pump; 155 GPH Flow Rate; 14 psi. Max Pressure; 3/8 NPT Inlet And Outlet; Carbureted Applications;

QFT’s electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure ( 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included. • 155 GPH electric fuel pump • Designed for street & drag race applications • Supports up to 600 HP engines • Constructed of lightweight steel and aluminum • 14 PSI maximum pressure • Features 3/8″ NPT inlet and outlet ports • Externally accessible pressure relief valve • Draws 4 Amps or less at full load • Recommend external bypass regulator (30-900 or 30-1900) for long duration use • Recommend 30-803 for non-bypass short duration use • Assigned U.S. Patent numbers D645,055, D645,057, and D645,058 • Mounting bracket, hardware, and detailed instructions included

• 155 GPH Flow Rate
• Constructed Of Lightweight Steel And Aluminum
• 14 PSI Maximum Pressure
• Features 3/8 in. NPT Inlets And Outlets
• Externally Accessible Pressure Relief Valve
• Draws 4 Amps Or Less At Full Load
• Designed For Carbureted Applications Only
• Mounting Bracket/Hardware/Instructions Included

Average Flow Rating: 155Brand: Quick Fuel TechnologyCategory: Air and Fuel DeliveryColor: SilverEmission Code: 5Finish: ZincFree Flow GPH: 155Fuel Delivery Type: CarburetorFuel Sending Unit Included: NoFuel Type: GasolineGasket Or Seal Included: NoGrade Type: PerformanceInlet Thread Diameter: 3/8Inlet Type: NPTInternal Or External: ExternalMaximum Amperage Draw: 4Maximum Pressure: 14Mounting Bracket Included: YesMounting Hardware Included: YesNegative Ground: YesOutlet Quantity: 1Outlet Thread Diameter: 3/8Outlet Type: NPTpart type: Electric Fuel PumpProduct Type: Fuel PumpRegulator Included: NoStrainer Included: NoSub Category: Fuel Pumps and Related ComponentsTerminal Quantity: 2Universal Or Specific Fit: UniversalWarning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day WarrantyWiring Harness Included: No
