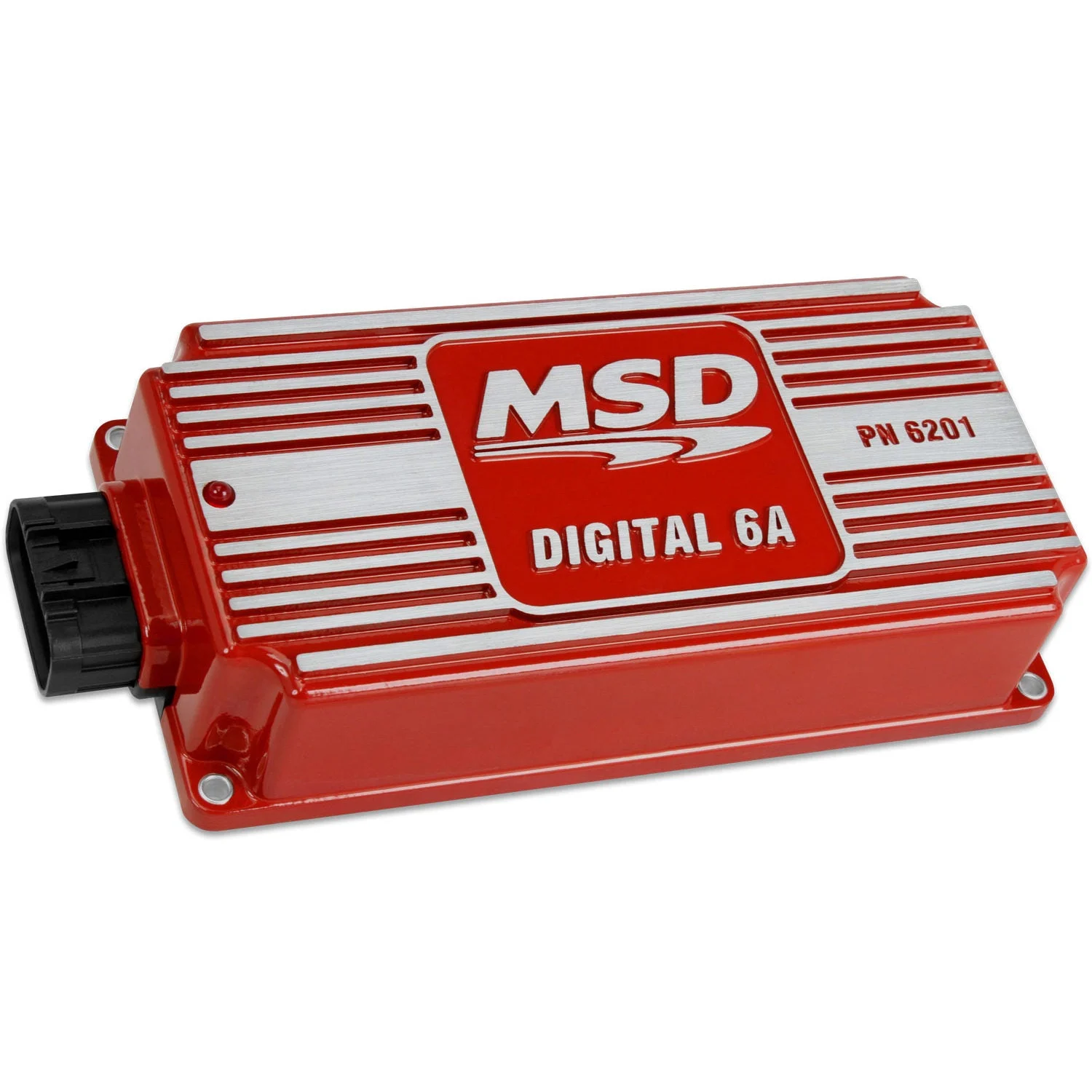

MSD 6201 – Digital-6A Ignition Controller

Description

MSD 6201 – Digital-6A Ignition Controller

Ignition Box – Digital 6A – Digital – CD Ignition – Multi-Spark – 45000V – Red – Each

Compatible with 4, 6, or 8 Cylinder Engines – Built-in LED for System Checks

The MSD 6A Ignition Control set the standards that other ignitions strive to reach. For 2011, the bar has been raised even higher as we introduce the all new Digital 6A ignition Control! MSD started with a clean slate and drew up plans for an all new housing. We kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. Inside the Digital 6A you’ll find a microprocessor that monitors and controls every firing. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the new Digital 6A deliver over 530 volts to the coil with up to 135mJ of spark energy – for every firing! Increased output combined with MSD’s proven multiple spark series is a win-win situation! The new Digital 6A is supplied with the wiring harness and the components you’ll need for installation. The ignitions are compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. They’ll accept trigger inputs from breaker points, amplifiers and magnetic pickups.

• Built-in LED for system checks
• Smooth Idle
• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy Starts
• Tach output wire
• .7 Amp per 1,000 RPM
• Compatible with 4, 6 or 8 – cylinder engines
• Quick throttle response
• 12-15 Volts, 7 Volt Start
• 15,000 RPM with 14.4 Volts

Brand: MSDC.A.R.B. EO #: D-40-43Category: IgnitionColor: RedConnector Gender: FemaleConnector Quantity: 1Current Draw: 1000Emission Code: 1Features: No Rev LimiterGrade Type: PerformanceHeight: 1.825Ignition Type: PerformanceLength: 8Maximum RPM: 15,000Mount Type: Surface MountMounting Hardware Included: YesPrimary Voltage: 520-540Product Type: Digital 6A Ignition Control BoxSecondary Voltage: 45,000Spark Energy (mJ per spark): 135-145Sub Category: Control ModulesTerminal Gender: MaleTerminal Quantity: 12Voltage Required: 12-15Warning: California Proposition 65Warranty: Manufacturer’s Limited 1 Year WarrantyWeight and Size: 1.7 lbs., 8L x 4W x 1.825HWidth: 4
