Motive Gear D35-411 – RP DANA 35 4.11 STANDARD MG DD

Description

Motive Gear D35-411 – RP DANA 35 4.11 STANDARD MG DD

RP DANA 35 4.11 STANDARD MG DD

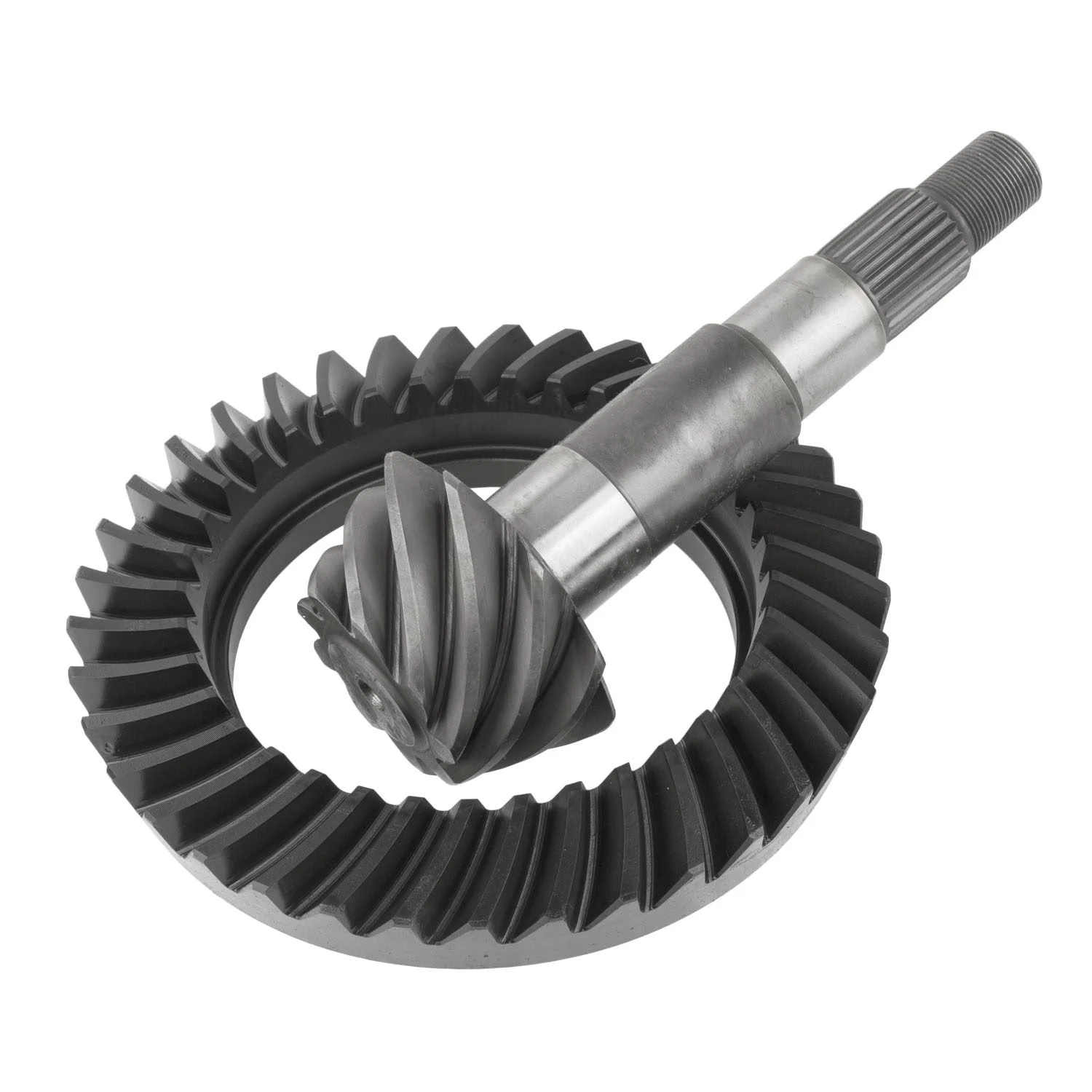

DIFFERENTIAL RING AND PINION DANA 35 AXLE; W/4.11 AXLE RATIO

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner’s circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Dana 35 StandardDifferential Carrier Break: 3.54 Ratio and HigherPosition: FrontPosition: RearTaxonomy A: LD DifferentialTaxonomy B: Ring and PinionsTaxonomy C: FrontTaxonomy C: RearTaxonomy D: 4.11Ring Gear Bolt Quantity: 8Cover Bolt Quantity: 10Gear Ratio: 4.11Pinion Shaft Diameter: 1.376Ring Gear Tooth Quantity: 37Pinion Spline Count: 26Ring Gear Rotation: StandardPinion Gear Tooth Quantity: 9Differential Case Design Type: Dana 35Ratio: 4.11Ring Gear Outside Diameter: 7.5Ring Gear Material: 8620 Steel
