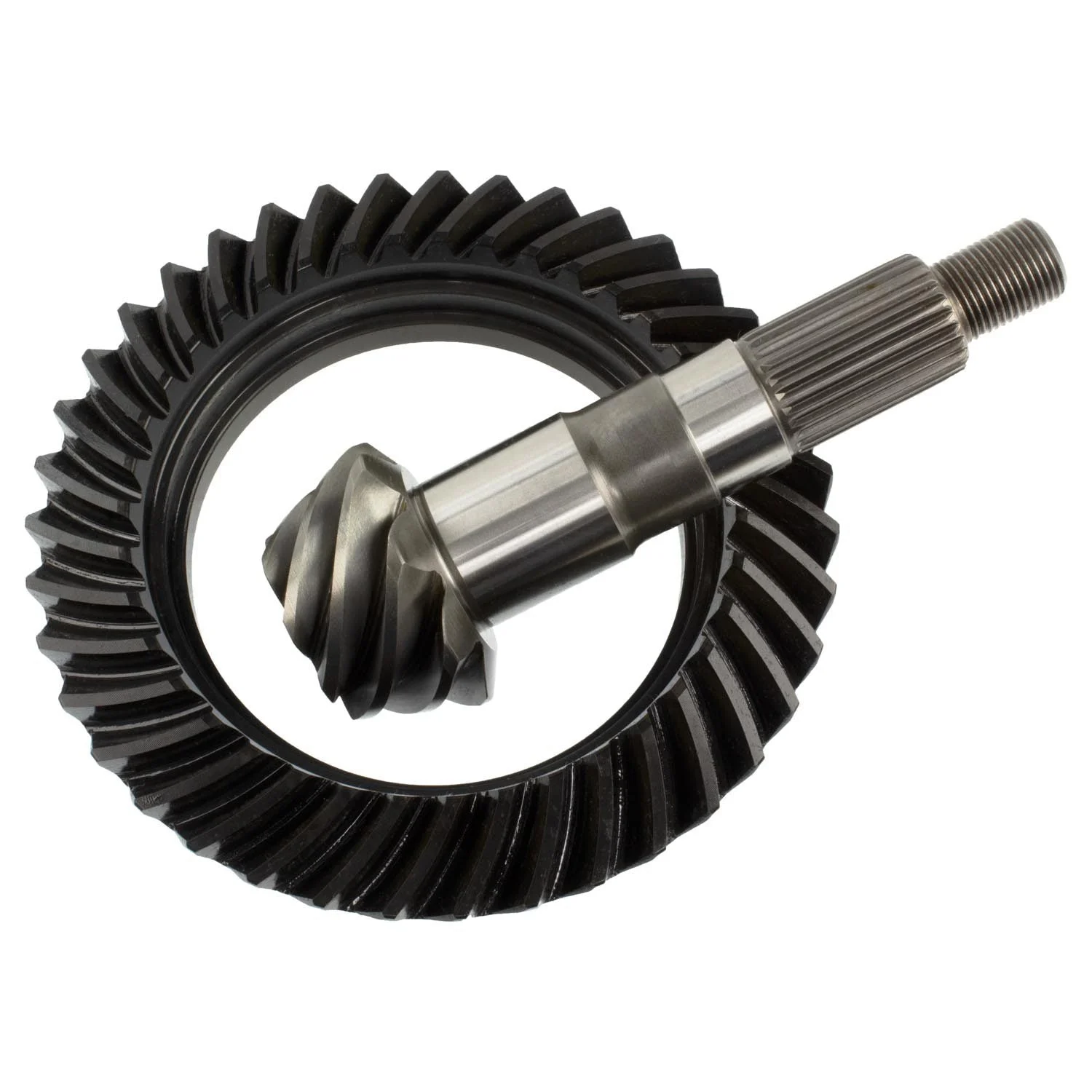

Motive Gear D30-488TJ – RP DANA 30 4.88 STANDARD TJ MG

Description

Motive Gear D30-488TJ – RP DANA 30 4.88 STANDARD TJ MG

RP DANA 30 4.88 STANDARD TJ MG

DIFFERENTIAL RING AND PINION DANA 30 AXLE; W/4.88 AXLE RATIO

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner’s circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Dana 30 TJDifferential Carrier Break: 3.73 Ratio and HigherPosition: FrontTaxonomy A: LD DifferentialTaxonomy B: Ring and PinionsTaxonomy C: FrontTaxonomy D: 4.88Ring Gear Bolt Quantity: 10Cover Bolt Quantity: 10Gear Ratio: 4.88Pinion Shaft Diameter: 1.376Ring Gear Tooth Quantity: 39Pinion Spline Count: 26Ring Gear Rotation: StandardPinion Gear Tooth Quantity: 8Differential Case Design Type: Dana 30 TJRatio: 4.88Ring Gear Outside Diameter: 7.125Ring Gear Material: 8620 Steel
