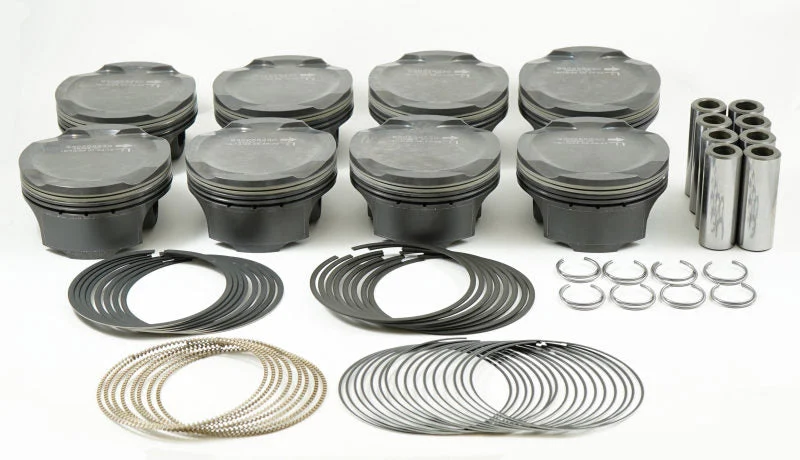

Mahle Motorsport 930258601 – Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR

Description

Mahle Motorsport 930258601 – Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR

Piston (set) – FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO

314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,370g,11.0CR, 2618

Pin Mass: 118gUCR Thickness: 1.0mmPin Diameter: 22.0mmPackage Quantity: Sold as a set of 8OCR Thickness: 2.0mmOCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: -1ccClips Included: YClip Style: Round WireUCR Material: 9254 SteelPin Material: SteelUCR Coating: HV385Rings Included: YPiston Style: Dome, w/ 4 valve reliefsPiston Ring Thickness: 1.2mm, 1.2mm, 2.5mmPiston Material: Forged, 2618Piston Mass: 370gPins Included: YPin Wall Thickness: 0.177Pin Style: FloatingPin Length: 61.1mm
