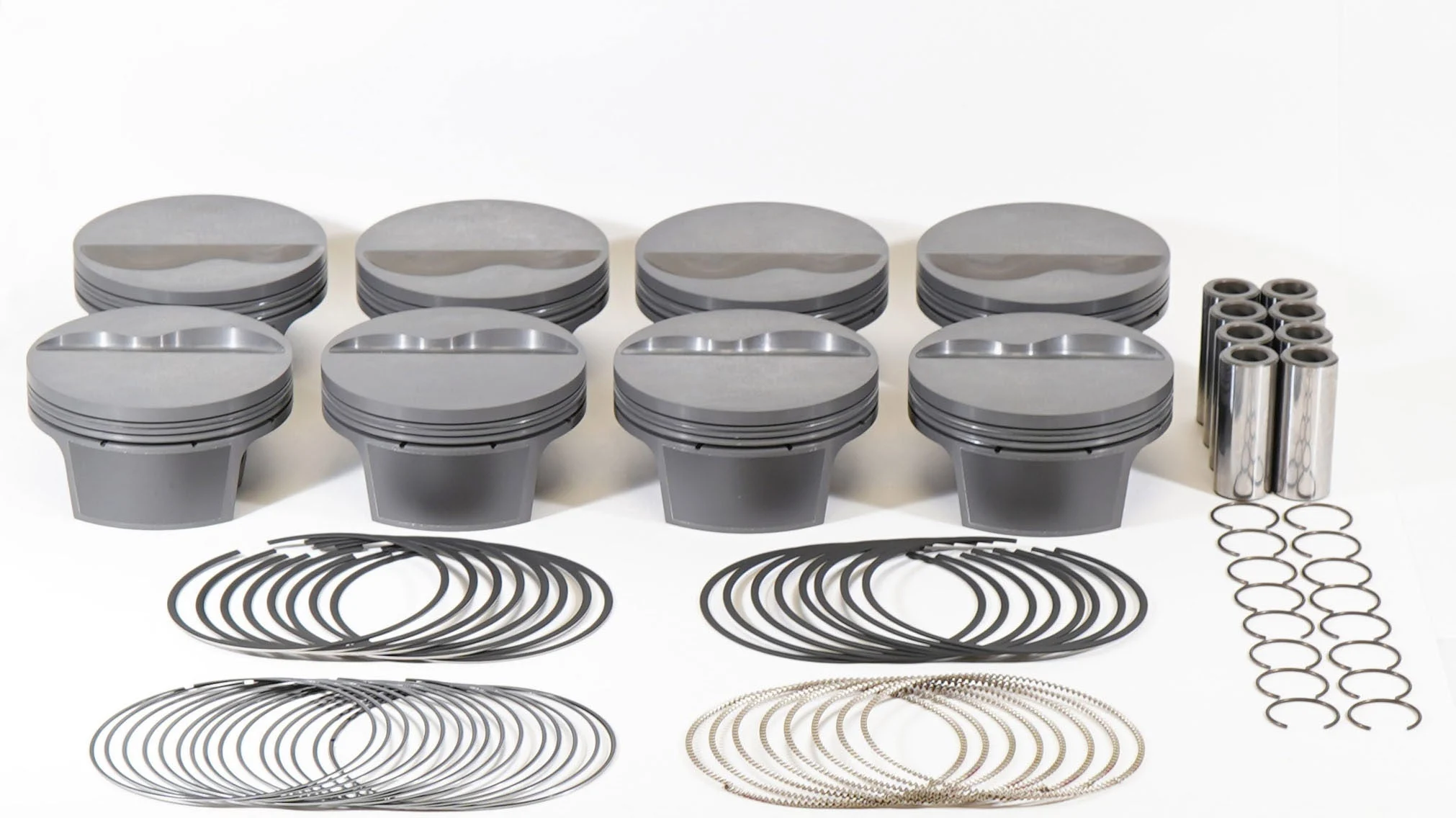

Mahle Motorsport 930244625 – Mahle MS Piston Set SBF 347ci 4.125in Bore 3.25in Stroke 5.4in Rod .927 Pin -6cc 10.0 CR Set of 8

Description

Mahle Motorsport 930244625 – Mahle MS Piston Set SBF 347ci 4.125in Bore 3.25in Stroke 5.4in Rod .927 Pin -6cc 10.0 CR Set of 8

Piston – Flat Top – 4.125 in Bore – 1.0 x 1.0 x 2.0 mm Ring Groove – Minus 6.50 cc – Small Block Ford – Set of 8

347cid 4.125 x 1.165CH, 3.250stroke,5.400rod,0.927pin,-6.5cc,415g,10.0CR, 4032

Rings Included: YPiston Style: Flattop, w/ 2 valve reliefsPiston Ring Thickness: 1.0mm, 1.0mm, 2.0mmPiston Material: Forged, 4032Piston Mass: 415gPins Included: YPin Style: FloatingClips Included: YPin Material: SteelPin Mass: 118gPin Length: 58.1mmPin Diameter: 23.55mmPackage Quantity: Sold as a set of 8OCR Thickness: 2.0mmOCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: -6.5ccUCR Thickness: 1.0mmClip Style: Round WirePin Wall Thickness: 0.168UCR Material: 9254 SteelUCR Coating: HV385
