Description

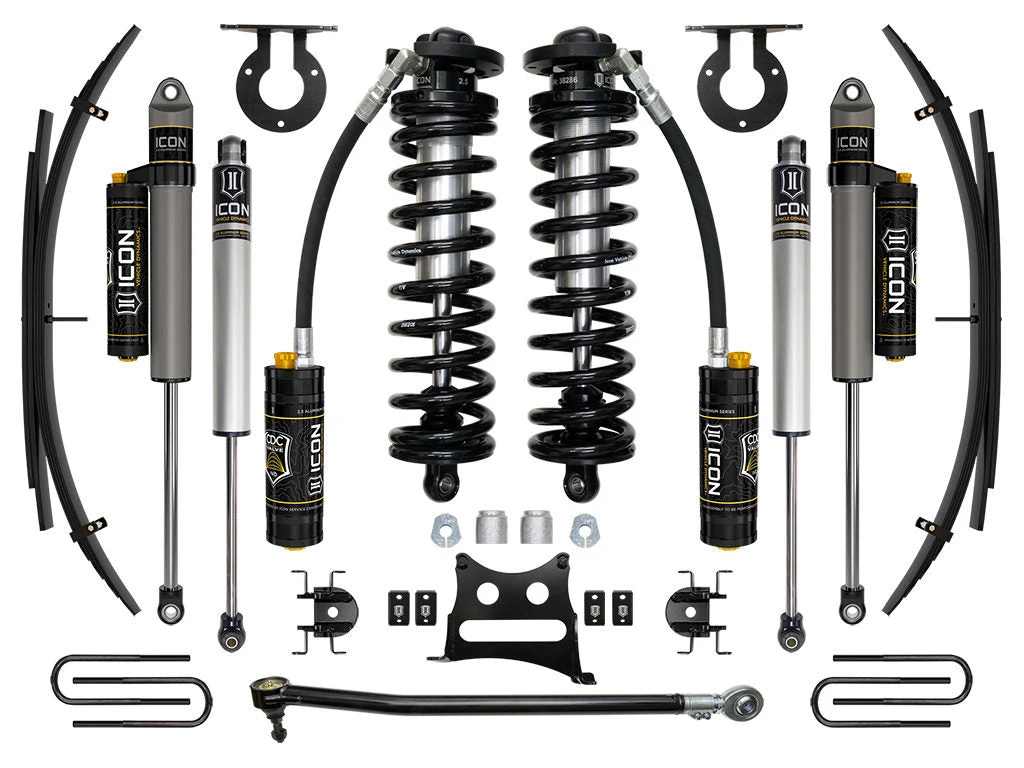

Icon K63144L – 17-22 Ford F-250/F-350 2.5-3in Stage 4 Coilover Conversion System
17-22 FORD F250/F350 2.5-3″ STAGE 4 COILOVER CONVERSION SYSTEM W EXPANSION PACK
The ICON 2.5-3” coilover conversion suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON’s CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON’s Stage 4 System is comprised of 2.5 Series CDCV remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), adjustable front track bar with massive FK rod end, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3″ or 3.25-3.75″ of front lift over stock
- Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series rear shocks
- Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
- Dual steering stabilizer kit for smooth wheel control while driving
- Application specific alignment Cams ensure proper caster alignment
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Improved ride quality and performance compared to stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 64039 – 08-25 FSD TRACK BAR BUMP STEER BRACKET KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBushings Included: YesCoil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2Damping Adjustment Type: ManualFront Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Color: BlackLeaf Spring Leaf Quantity: 7Leaf Spring Material: SteelMaximum Lift: 3.75Maximum Lift Front: 3.75Maximum Lift Height Front: 3.75Maximum Lift Height Rear: .5Maximum Lift Rear: 2Minimum Lift Front: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: PiggybackRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
