Description

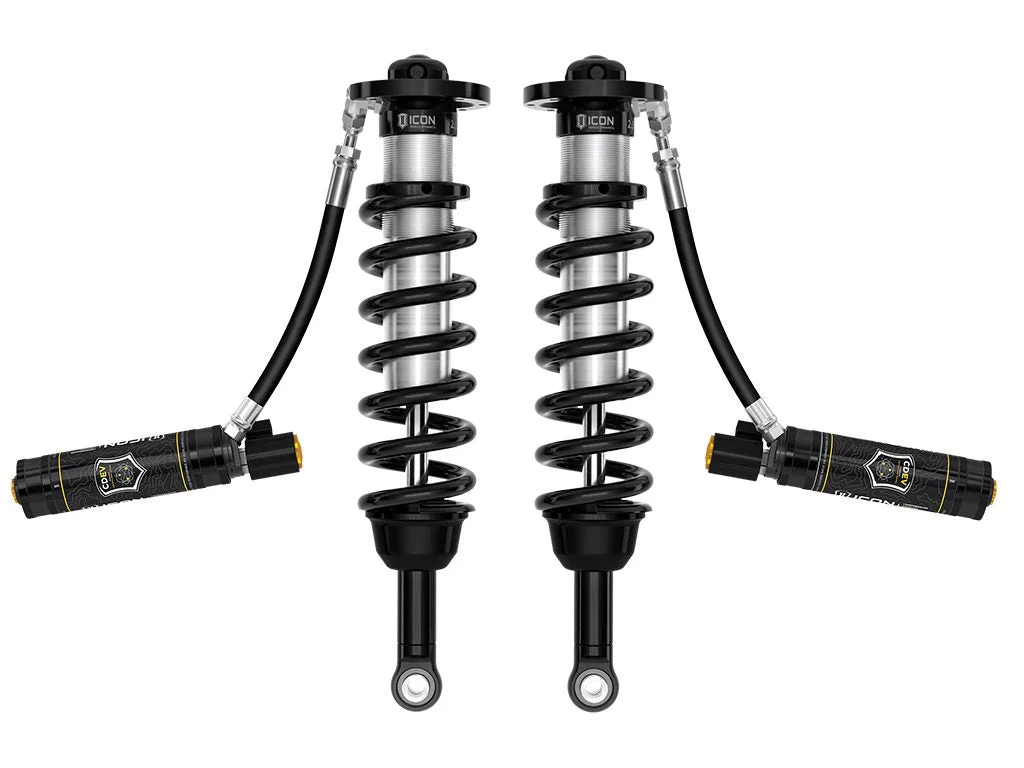

Icon 58790E – 2024 Lexus GX550 2.5 Series Coilover Kit w/Remote Reservoir CDEV
24-26 GX550 FRONT 2.5 VS CDEV COILOVER KIT
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.25-3″ of lift height adjustment over stock
- 2.5″ diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Active or Passive Suspension: ActiveAdd-On Part: 57870EP – 24-25 LC250/24-26 GX550 0-3″ REAR 2.5 VS RR CDEV PAIRAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 58552DJ – 24-25 TACOMA/24-25 LC250/24-26 GX550/25-26 T4R BILLET UCA DJ PRO KITAdd-On Part: 58552GDJ – 24-25 TACOMA/24-25 LC250/24-26 GX550/25-26 T4R BILLET UCA DJ PRO KIT GOLD ANOAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 55156 – 22-25 TUNDRA/23-25 SEQUOIA/24-26 GX550 DIFF DROP KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 58452DJ – 24-25 TACOMA/24-25 LC250/24-26 GX550/25-26 T4R TUBULAR UCA DJ PRO KITAdd-On Part: 53512 – 24-26 GX550 IIC INSTALL KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 19.2Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield: NoDust Shield Included: NoExtended Length: 26.05Front Spring Rate: 550Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: AluminumMaterial: SteelMaximum Lift: 3Maximum Ride Height Raising Distance: 3Minimum Lift: 1.25OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 34″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.00” Backspace / 25mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Center of EyeletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.85Upper Mount Type: Mounting PlateValving Type: Digressive
