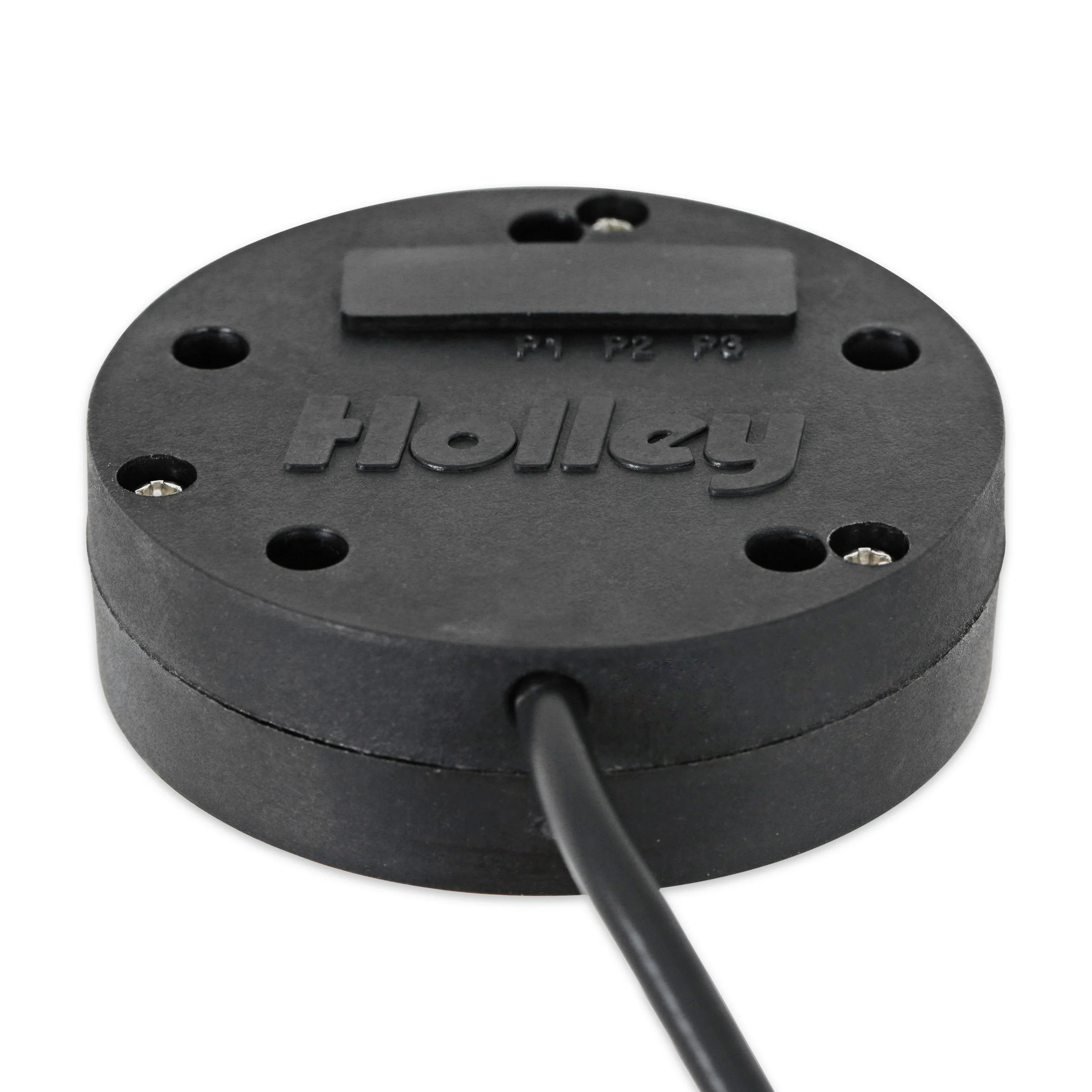

Holley 19-250-1 – Easy Level™ Fuel Level Sender

Description

Holley 19-250-1 – Easy Level™ Fuel Level Sender

Fuel Level Sending Unit – Easy Level – Laser Measuring – 4 in to 39 in Deep Tanks – Gasket / Hardware Included – Each

Universal floatless laser fuel level sender

Max operating temperature of 185 degrees

• Improved design with flying leads for easy wiring and prevents accidental contact with surfaces above sending unit
• Quickly reads fuel levels with zero contact
• Easy installation with no moving parts – popular 5 bolt flange
• Long life sensor and no failing floats
• Easy to program the level of any tank and electronic gauge – does not work with OE style gauges that utilize an ohm only input
• Bolt Circle Diameter (BCD) is 2.122″
• Output is a PWM signal for 12 Volt applications (10 volts to 20 volts maximum)
• Includes mounting hardware and rubber gasket
• May not work on Highly Reflective Stainless-Steel Tanks

Application: UniversalBolt Hole Quantity: 5Brand: HolleyCategory: Air and Fuel DeliveryEmission Code: 6Grade Type: PerformanceMaterial: Plasticpart type: Fuel Level SensorProduct Type: Fuel Gauge Level SenderSub Category: SensorsWarning: California Proposition 65
