Holley 12-753 – 30 Amp Fuel Pump Relay Kit

Description

Holley 12-753 – 30 Amp Fuel Pump Relay Kit

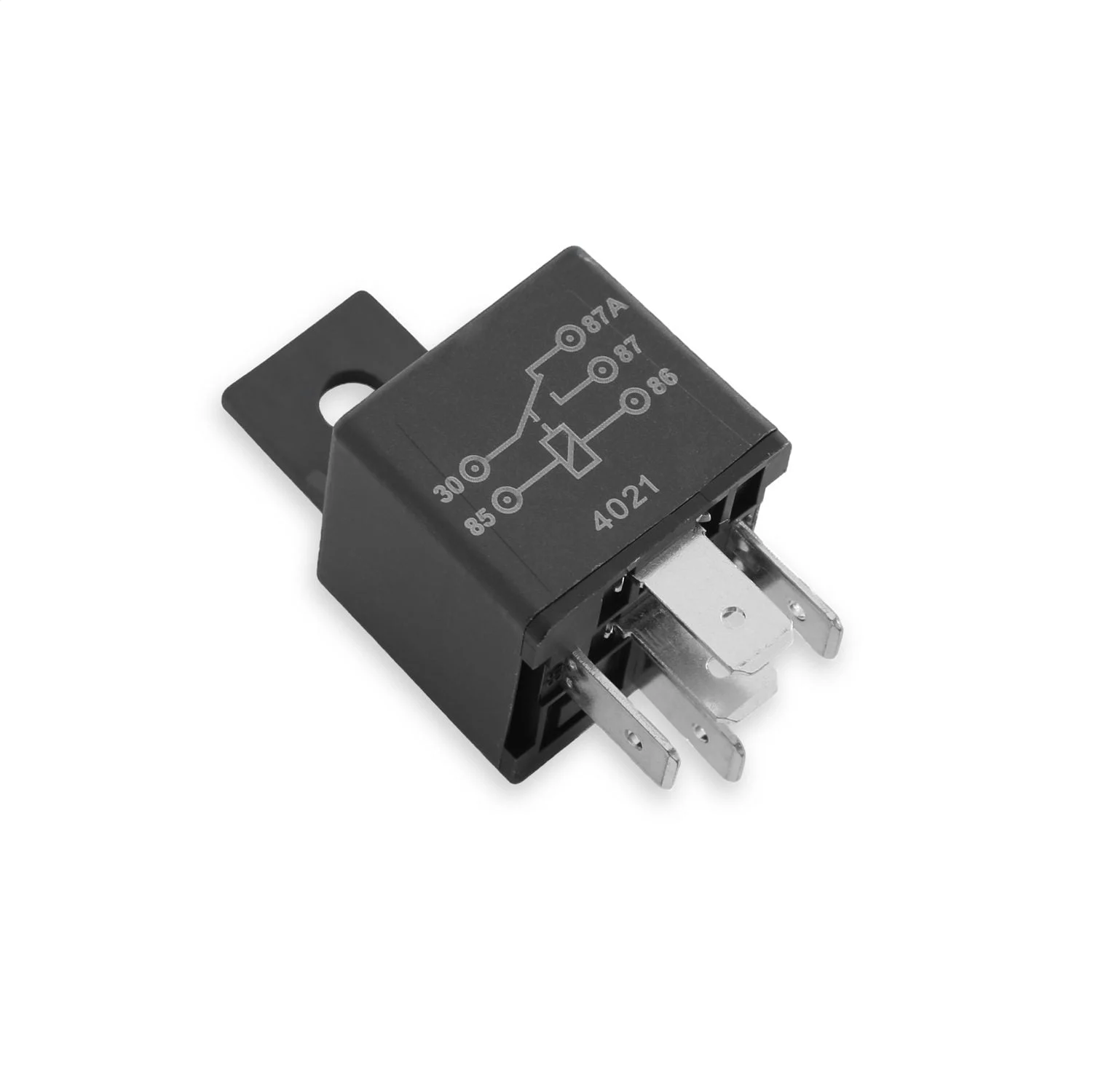

Relay Switch – Single Pole – 30 amps – 12V – Wiring Included – Fuel Pump – Kit

Fuel Pump Relay Kit; Electric; 30 Amp.;

This Holley kit is intended primarily for those applications running an electric pump. The long wire runs in these kinds of installations can sometimes result in a voltage drop at the electric pump. Installation of this kit is good insurance that the fuel pump will be receiving full voltage from the battery. Holley P/N 12-753 can be used with any electric fuel pump, as long as the current load is not above 30 amps. It will work with 12, 16 and 24 volt systems and comes equipped with 12 AWG that provide extra current carrying capacity with minimal voltage loss. A 30 amp relay is included with a relay socket wired with extra long leads specifically designed to reduce the number of splices required. Quality insulated crimp connectors are provided to make necessary splices where required. Detailed installation instructions are included.

• Can Be Used w/Electric Fuel Pump w/Load Not Above 30 Amps
• 12 Amp Wires For Extra Current Capacity With Min. Voltage Loss
• Relay Socket Wired w/Long Leads To Reduce Number Of Splices
• Insulated Crimp Connectors Provided To Make The Necessary Splices
• Detailed Instructions Included

Amperage Rating: 30Brand: HolleyCategory: Air and Fuel DeliveryComponent Type: Relay KitConnector Quantity: 1Continuous Duty: YesEmission Code: 5Grade Type: PerformanceHeatsink Protected: NoMounting Bracket Included: NoMounting Type: Inlinepart type: Fuel Pump RelayProduct Type: Relay KitSub Category: RelaysTerminal Type: BladeVoltage: 12Warning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
