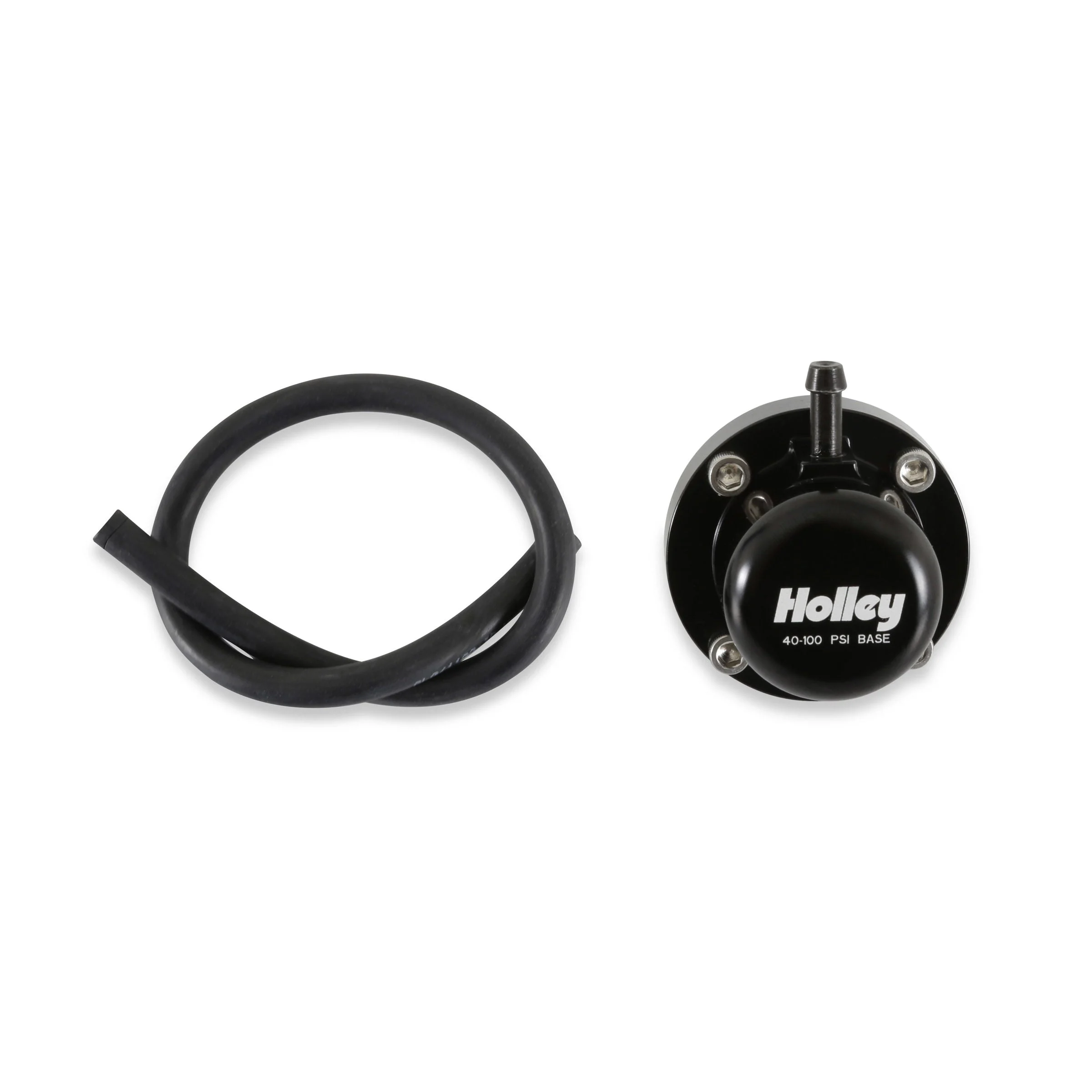

Holley 12-1004 – DIRECT MOUNT FUEL PULSE DAMPER

Description

Holley 12-1004 – DIRECT MOUNT FUEL PULSE DAMPER

Fuel Pulse Damper – Direct Mount – 40-100 psi – 6 AN Male O-Ring – Aluminum – Black Anodized – E85 / Gas / Methanol – Each

FUEL PULSE DAMPER, 6AN, EXTENDED RANGE 40-100 PSI

Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can’t be identified with an analog gauge but can cause issues with fuel delivery to the engine.

• Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
• Compatible with any fuel — full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
• Fittings included for damper/regulator’s and direct mount dampers
• 1/8″ NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer
• Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
• Assembled and tested in the USA

Brand: HolleyCategory: Air and Fuel DeliveryEmission Code: 3Finish: Anodized BlackFuel Type: Gasoline / Ethanol / Methanol / E85Gasket Or Seal Included: NoGrade Type: PerformanceMaterial: AluminumMounting Hardware Included: Nopart type: Fuel Injection Pressure DamperPort Quantity: 1Pressure Range: 40-100 PSIProduct Type: Fuel Pulse DamperShape: RoundStyle: Billet AluminumSub Category: Fuel Injection System and Related ComponentsThread: 9/16-18 Male O-Ring (6 AN)Warning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day Warranty
