Earl’s Performance 816ERL – Earl’s UltraPro Oil Cooler – 16 Rows – Extra-Wide Cooler

Description

Earl’s Performance 816ERL – Earl’s UltraPro Oil Cooler – 16 Rows – Extra-Wide Cooler

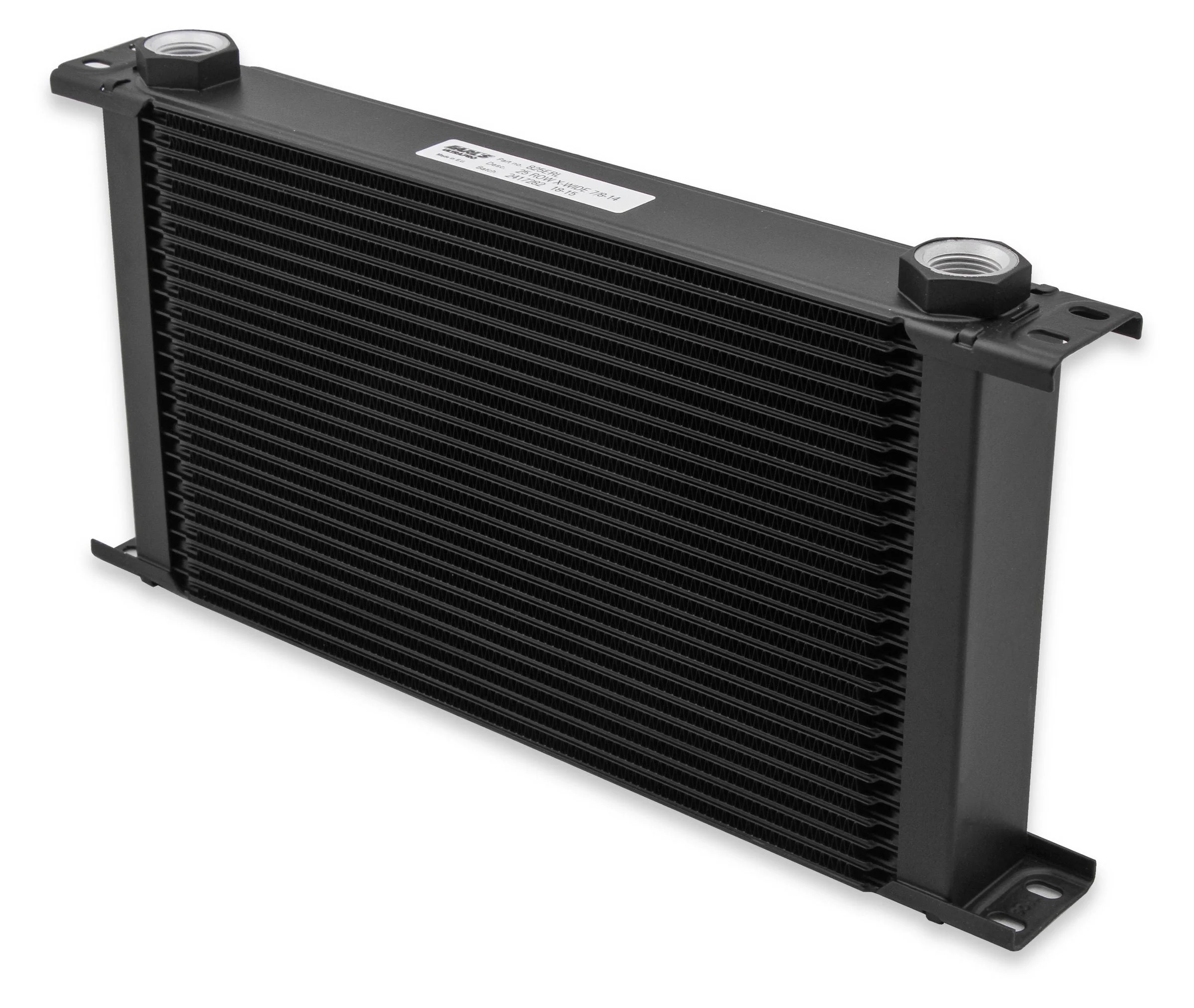

Earl’s UltraPro Oil Cooler – 16 Rows – Extra-Wide Cooler

UltraPro Oil Cooler; Black; 16 Row; -10AN Female; Extra-Wide;

Earls new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.

• Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
• Made Using State of the Art Brazing Technology
• Highly Efficient Design w/ Minimal Pressure Drop
• Extremely Durable Lightweight Aluminum Construction w/Black Finish
• (3) Width Options – Narrow 8.25, Wide 12.99, and Extra Wide 15.94 Overall Width
• (10) Height Options – w/ 7 to 60 Rows (2.09 to 18.31 Tall)
• (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud
• Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
• (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
• Optional Mounting Brackets – Sold Separately

Application: Engine Oil CoolerApplication: Transmission CoolerApplication: Differential CoolerBody Width (Overall): 16.000″Brackets Included: NoBrand: Earl’sCategory: Belts and CoolingConstruction: Stacked Plate – BrazedCooler Fittings: 585112ERLCooler Fittings: 585110ERLCooler Fittings: 585108ERLCooler Fittings: 585106ERLCooler Fittings: AT585106ERLCooler Fittings: AT585112ERLCooler Fittings: AT585108ERLCooler Fittings: AT585110ERLCooler Fittings Included: NoEmission Code: 5Engine HP Range: 220-310 HPFinish: BlackFitting Centers: 12.480″Height: 4.800″Material: AluminumMounting Bracket Width: 15.160″Mounting Brackets: 800ERLpart type: Engine Oil CoolerPort Size: 7/8-14 Female (-10 O-Ring Boss)Product Line: UltraProProduct Type: Oil CoolerROWS: 16 RowsSub Category: Radiators, Coolers and Related ComponentsTemperature Range: -40° F to 302° FThickness: 2.000″Transmission Fluid BTU Range: 15,000-25,000Volume: .45 QuartsWeight: 2.95 LbsWidth: Extra-Wide CoolerWidth (Less Mounting Ears): 14.125″
