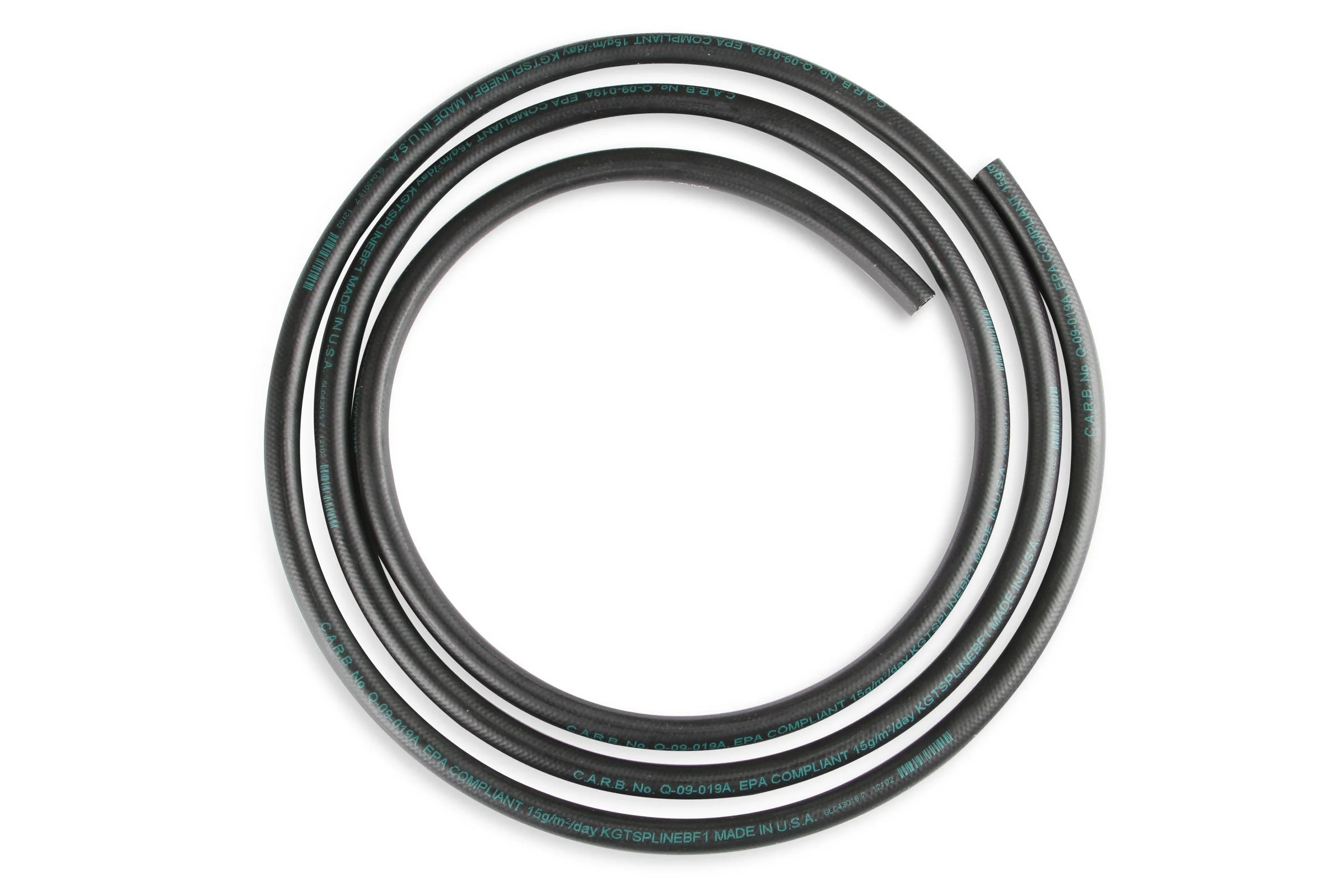

Earl’s Performance 752066ERL – Vapor Guard EFI Hose

Description

Earl’s Performance 752066ERL – Vapor Guard EFI Hose

Hose – Vapor Guard EFI – 3/8 in ID – 20 ft – Rubber – Black – Each

Vapor Guard EFI Hose; Hose Size: 3/8 in.; Max PSI: 225; Max Vacuum: 10 in. HG; Bulk; Length: 20 ft.;

Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl’s Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl’s Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl’s Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl’s Vapor Guard a three way shield against hose deterioration.

• Fuel Injection Hose – Rated Maximum 225 PSI
• Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
• Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
• A two foot section of Earl™s Vapor Guard saves one gallon of gas each year as compared to traditional rubber hose from permeation alone
• Hose available in 5/16 and 3/8 sizes
• Fuel Injection Hose Rated Maximum 225 PSI

Brand: Earl’sCategory: Plumbing AN Fittings and HoseCompatible Hose Ends: Vapor GuardEmission Code: 5Fluid Type: DieselFluid Type: Race GasFluid Type: Pump GasFluid Type: E85Fluid Type: Bio-FuelsFluid Type: CoolantFluid Type Rating – Bio-Fuels: 4 out of 5 RatingFluid Type Rating – Coolant: 5 out of 5 RatingFluid Type Rating – Diesel: 4 out of 5 RatingFluid Type Rating – E85: 3 out of 5 RatingFluid Type Rating – Methanol/Alcohol: 2 out of 5 RatingFluid Type Rating – Pump Gas: 4 out of 5 RatingFluid Type Rating – Race Gas: 4 out of 5 RatingFuel System Type: EFIHose Family: Vapor GuardHose Length: 20 FeetHose Size: 3/8Max PSI: 225Max Vacuum: 10 inHgMin. Bend Radius: 2.5 in.Outside Diameter: .625 in.part type: Fuel HoseProduct Type: HoseSubmersible in Fuel: NoTemperature Range: -40°F to 275°fWarning: California Proposition 65
