Earl’s Performance 750055ERL – Vapor Guard EFI Hose

Description

Earl’s Performance 750055ERL – Vapor Guard EFI Hose

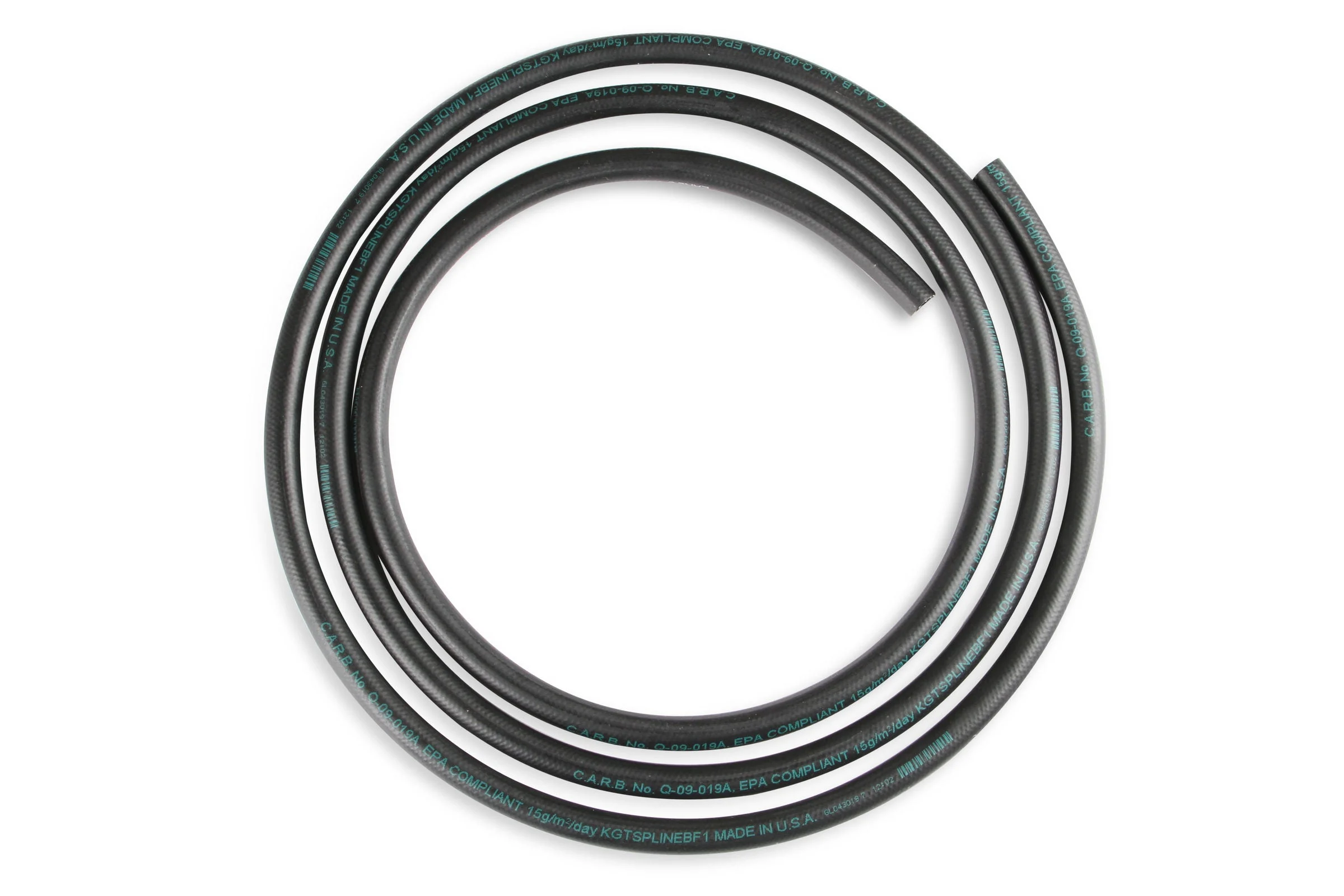

Earl’s Vapor Guard™ Hose

Vapor Guard EFI Hose; Hose Size: 5/16 in.; Max PSI: 225; Max Vacuum: 10 in. HG; Bulk Sold By The Foot In Continuous Length Up To 50 ft;

Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl’s Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl’s Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl’s Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl’s Vapor Guard a three way shield against hose deterioration.

• Multi-Layer Design
• Multi-Fuel Compatible
• Initial Layer High Resistant To Heat And Aggressive Fuels
• Maximum Pressure Rating 225 PSI

Brand: Earl’sCategory: Air and Fuel DeliveryCompatible Hose Ends: Vapor GuardEmission Code: 5Fluid Type: DieselFluid Type: Bio-FuelsFluid Type: Pump GasFluid Type: Race GasFluid Type: E85Fluid Type: CoolantFluid Type Rating – Bio-Fuels: 4 out of 5 RatingFluid Type Rating – Coolant: 5 out of 5 RatingFluid Type Rating – Diesel: 4 out of 5 RatingFluid Type Rating – E85: 3 out of 5 RatingFluid Type Rating – Methanol/Alcohol: 2 out of 5 RatingFluid Type Rating – Pump Gas: 4 out of 5 RatingFluid Type Rating – Race Gas: 4 out of 5 RatingFuel System Type: EFIHose Family: Vapor GuardHose Length: BULKHose Size: 5/16Max PSI: 225Max Vacuum: 10 inHgMaximum Continuous Length: 50 FeetMin. Bend Radius: 2.5 in.Outside Diameter: .585 in.part type: Fuel HoseProduct Type: HoseSub Category: Fuel StorageSubmersible in Fuel: NoTemperature Range: -40°F to 275°fWarning: California Proposition 65
