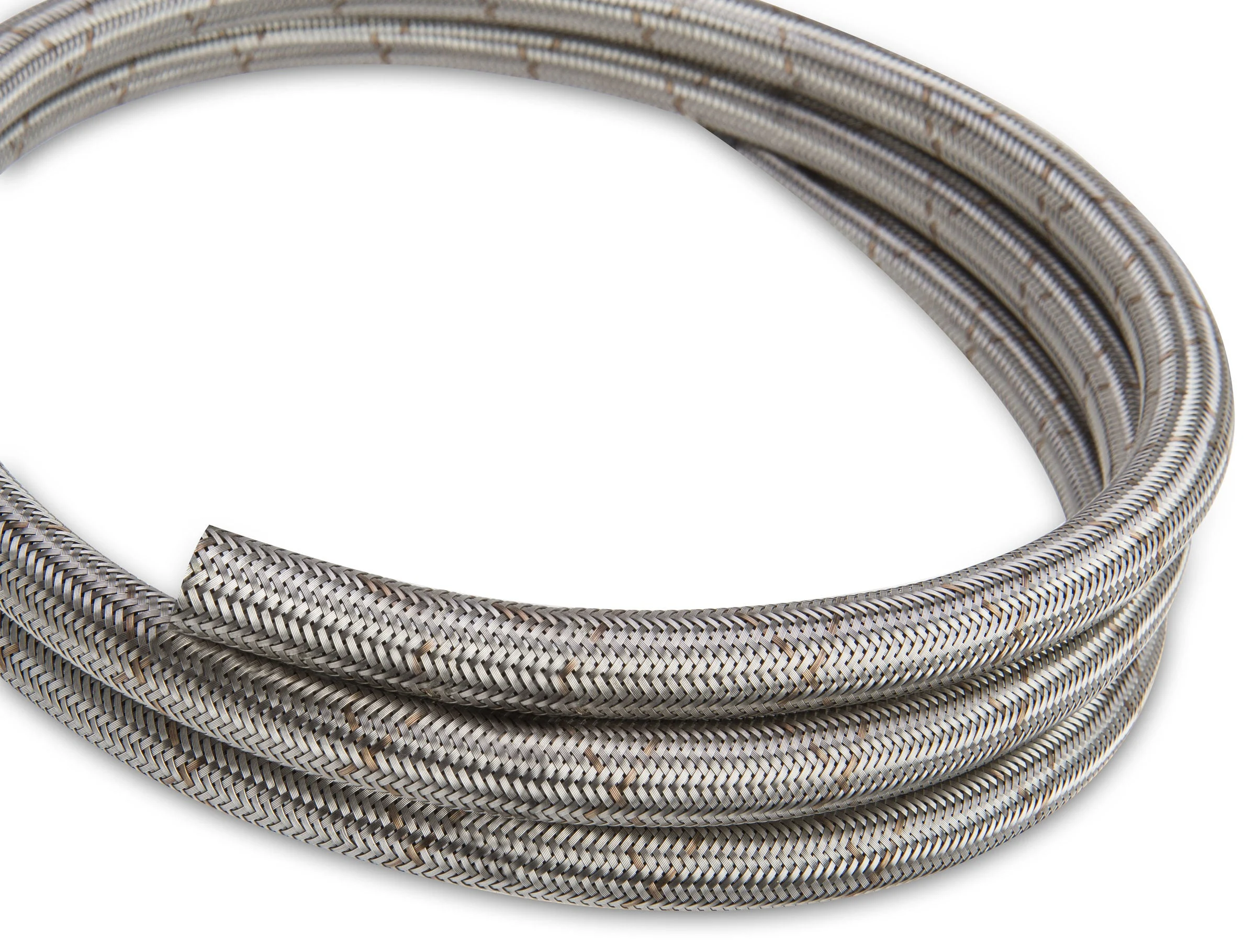

Earl’s Performance 660010ERL – Ultra-Flex™ 304 Stainless Braid Hose

Description

Earl’s Performance 660010ERL – Ultra-Flex™ 304 Stainless Braid Hose

Earl’s Ultra Flex Hose Size -10 SS Braid – Hose Sold By the Foot up to 25′

Maximum operating pressure of 995 PSI. Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Designed for Ultra Flex Hose Ends.

We have taken the same inner tubing of our Kevlar(R)) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar(R)) hose but with additional protection. The carbon lined inner tubing, for static dissipation, is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra–flex stainless is 40 percent lighter and has an average of 14 percent larger ID than our premium stainless braided rubber hose. Being Teflon(R) it has a large range of applications including fuel, oil, water, methanol and air as well as a very high vacuum rating of 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar(R)) ultra–flex line. This means that the same crimper and dies used for the Kevlar(R)) hose can be used with the new stainless, so your ultra–flex crimper and dies are all you need for all of your high end line assemblies. Teflon(R) and Kevlar(R)) are registered trademarks of DuPont Performance Elastomers.

• Aircraft Quality 304 Stainless Steel Wire
• High-Temp. Smooth Bore PTFE Tubing
• Convoluted Outer Wall Of Inner Tube
• Incredible Flexibility
• Remains Flexible At Temps. Between -94F And +510F
• Clean and Fast Flowing
• Sold Per Foot

Brand: Earl’sCategory: Air and Fuel DeliveryCompatible Hose Ends: Ultra-FlexCrimping Die: 22MM – D10022BERLEmission Code: 5Final Crimp O.D. Range: .925″-.937″Fluid Type: E85Fluid Type: Automatic Transmission FluidFluid Type: DieselFluid Type: CoolantFluid Type: Bio-FuelsFluid Type: Pump GasFluid Type: Race GasFluid Type: Methanol/AlcoholFluid Type: OilFluid Type Rating – Automatic Transmission Fluid: 5 out of 5 RatingFluid Type Rating – Bio-Fuels: 5 out of 5 RatingFluid Type Rating – Coolant: 5 out of 5 RatingFluid Type Rating – Diesel: 5 out of 5 RatingFluid Type Rating – E85: 5 out of 5 RatingFluid Type Rating – Methanol/Alcohol: 5 out of 5 RatingFluid Type Rating – Oil: 5 out of 5 RatingFluid Type Rating – Pump Gas: 5 out of 5 RatingFluid Type Rating – Race Gas: 5 out of 5 RatingFluid Type Rating – Vacuum: 5 out of 5 RatingHose Family: Ultra-FlexHose Length: BULKHose Outer Material: Stainless SteelHose Size: 10 ANInside Diameter: .658″Max Vacuum: 29 in HgMax Working PSI: 955 PSIMaximum Continuous Length: 25 FeetMin. Bend Radius: 1.772″Outside Diameter: .819″part type: Fuel HoseProduct Type: HoseSub Category: Fuel StorageSubmersible in Fuel: YesWarning: California Proposition 65
