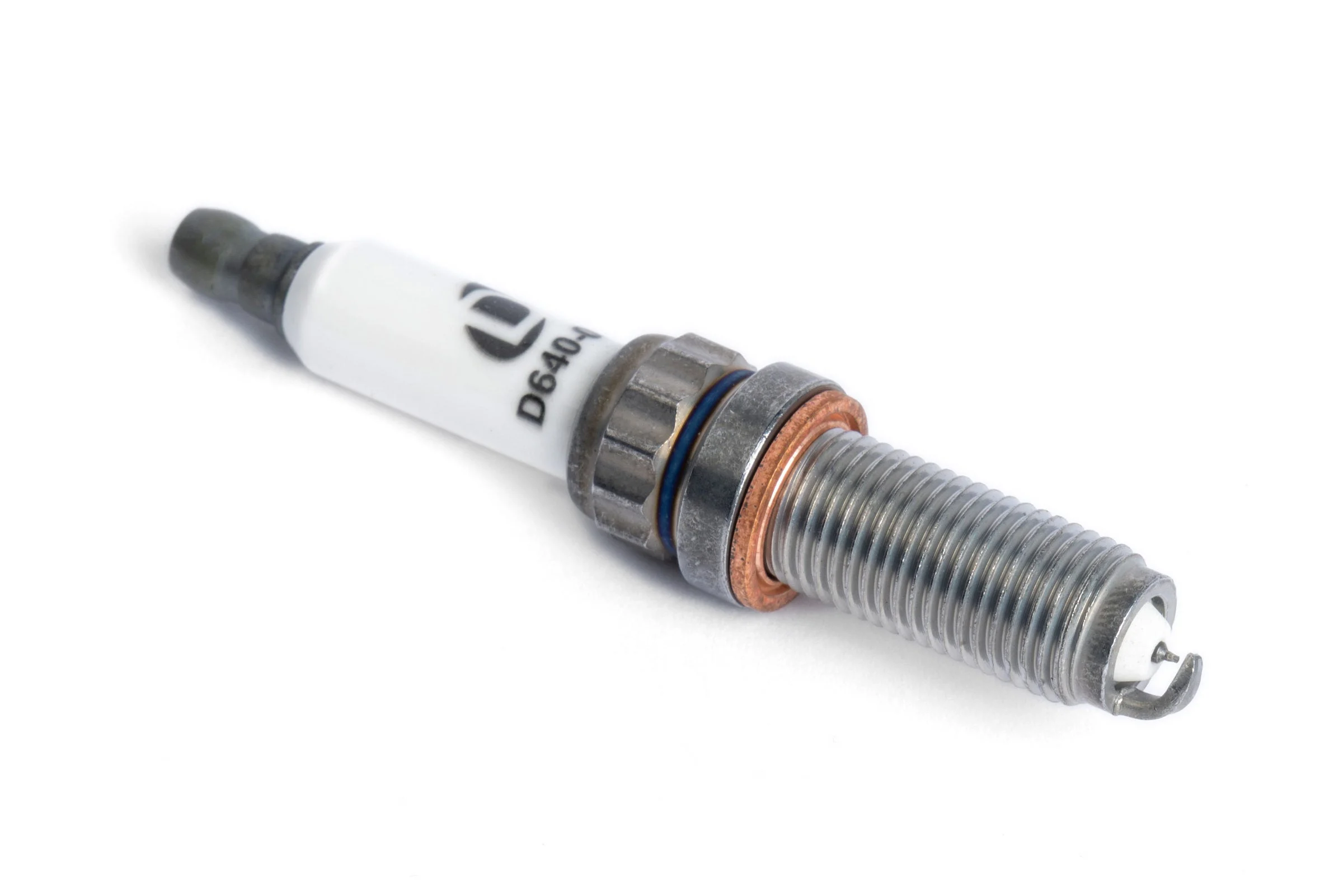

Dinan D640-0002 – Iridium Spark Plug – 12×26.5x14MM (HV) – Heat Range 9
Dinan Iridium Spark Plug – 12×26.5x14MM (HV) – Heat Range 9
N20/N54/N55/S55/N63/N63TU/S63/S63TU
Compatible OEM Part #Cross Reference: 12120039664, 12120038896 & 12120038704
- Heat range 9 spark plug (Similar: Bosch 3, Brisk 10, Champion 4, Denso 27, and NGK 9)
- 152% higher melting point than silver, 125% higher than copper, and 38% higher than platinum
- Stronger than copper and platinum
- Acceptable for high performance / tuned and most stock* vehicle applications alike
- Projected insulator design
- Lower required supplied voltage
- Cooler operating temperature than stock plugs
- Optimized electrode design for hard to ignite fuels, such as ethanol
- Resists preignition better than stock plugs
- An excellent match for Dinan ignition coils
- Thread reach: 26.5mm
- Thread diameter: 12mm
- Hexagon: 14mm Bi-Hex
- Terminal Type: Nut
- Seat Type: Flat
- Install Torque: 17 Nm
- Insulator Material: Ceramic
- Supplied Gap: 0.5mm
- 3 Steps colder than OEM (N54)
- 2 steps colder than OEM (N55)
- 1 step colder than OEM (N20, S55, N63, S63)
- Made in the EU
Brand: DinanCategory: IgnitionCenter Electrode Core Material: CopperCenter Electrode Projection: Short ProjectionCenter Electrode Tip Material: IridiumElectrical Terminal Type: Non-Removable NutEmission Code: 2Grade Type: PerformanceHex Size: 14Hex Type: Bi-HexIndexed: NoInsulator Material: Ceramicpart type: Spark PlugProduct Type: Spark PlugReach: 26.5Seat Type: FlatSub Category: Secondary IgnitionThread Diameter: 12Warning: California Proposition 65Warranty: 1yr/Unlimited Miles
