Description

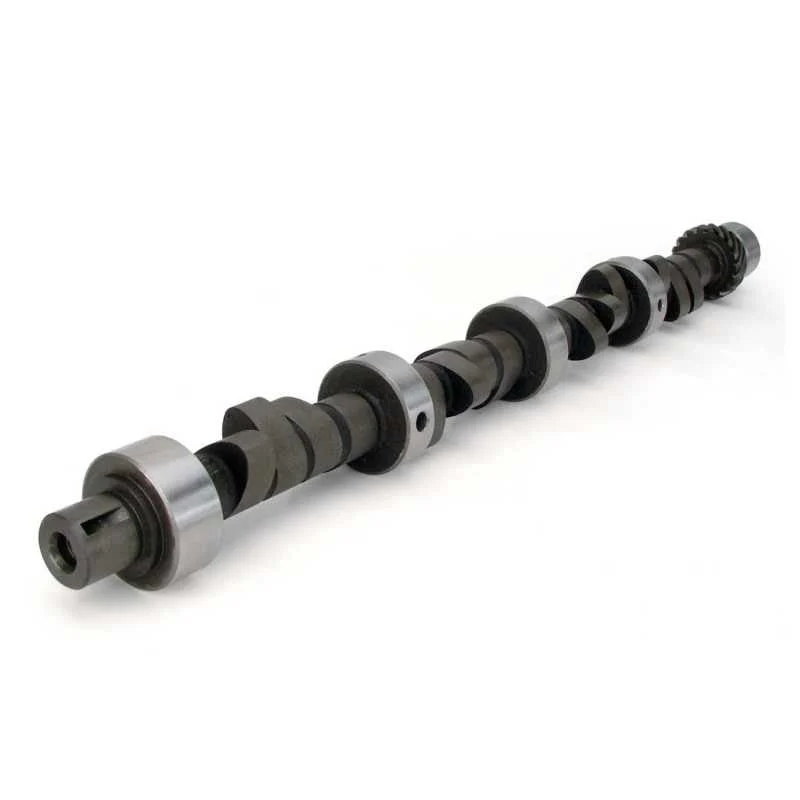

COMP Cams 20-618-5 – Camshaft CRS 290A-6
Drag Race 255/255 Solid Flat Cam for Chrysler 273-360
318-340. 4000+ stall, 750 CFM, manifold. 4.88 gear. 10.5:1+ compression.
Solid: 318-340. 4000 stall, 750 CFM, manifold. 4.88 Gear, 10.5:1 and up compression.
Camshaft Series: Drag RaceUsage: StripCam Type: Solid Flat TappetGrind Number: 290A-6Basic Operating RPM Range: 4,000-7000Advertised Exhaust Duration: 290Lobe Separation: 106Intake Valve Lift: 0.54Exhaust Valve Lift: 0.54Advertised Intake Duration: 290Exhaust Duration at .050 inch Lift: 255Intake Duration at .050 Inch Lift: 255Lifters Included: NoValve Springs Required: YesAssembly Lubricant Included: YesCamshaft Gear Attachment: 1-BoltCamshaft Material: Cast IronEngine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)Lifter Type: Solid Flat TappetAmazon ASIN: B001GBMGUYC.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for On-Road Vehicles?: NoC.A.R.B. Exemption Reason: N/AC.A.R.B. E.O. Number: N/AGrind Number: 290A-6
