Centerforce 519026651 – ? Diesel Twin and Flywheel Kit, 109.10 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1700 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L

Description

Centerforce 519026651 – ? Diesel Twin and Flywheel Kit, 109.10 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1700 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L

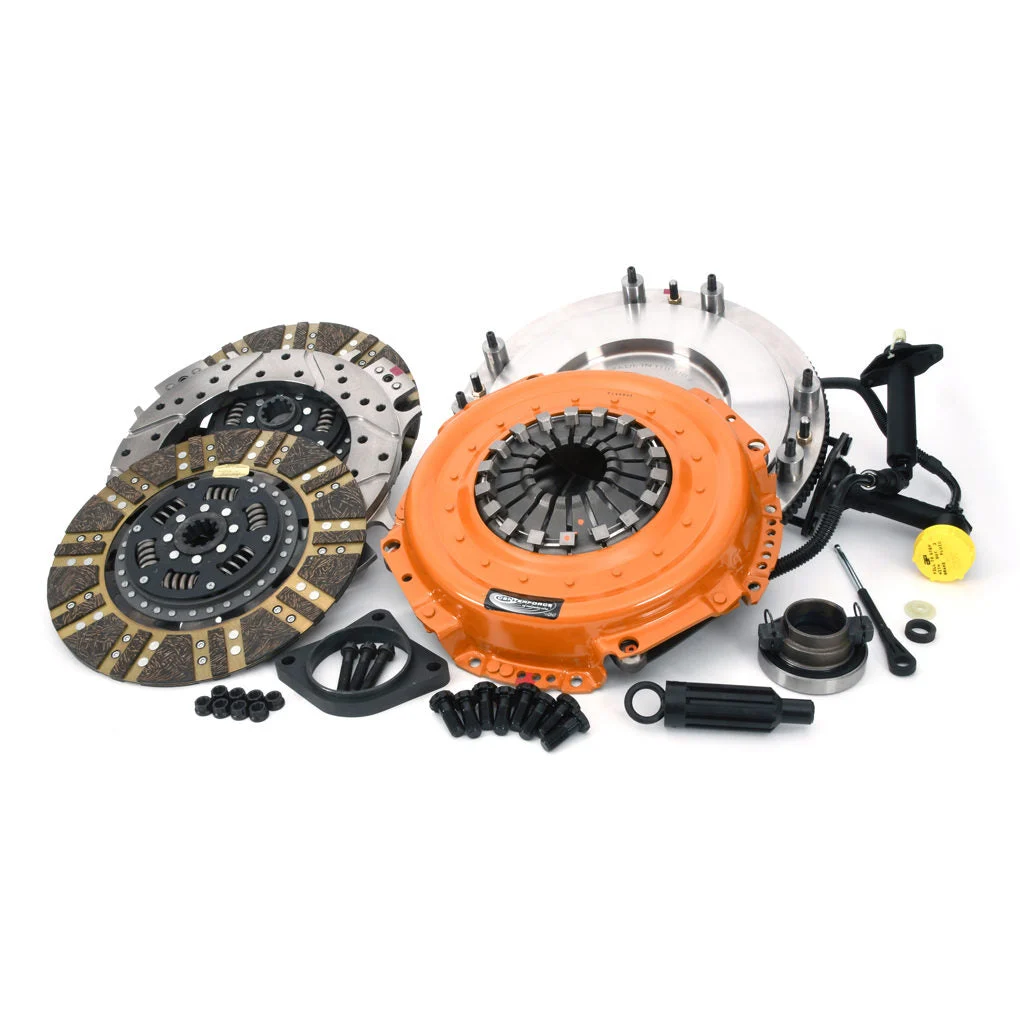

Centerforce(R) Diesel Twin and Flywheel Kit

This Centerforce Twin Disc clutch offers smooth engagement, quiet operation, light pedal, and high-end holding capacity.

Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.

• Arp Hardware
• Centrifugal Assist Tuned For Diesels
• Reduced Noise And Vibrations
• Built With Improved Cooling
• Smooth Operation And Max Longevity
• Ball Bearing Design
• 100 Percent Hand Built
• Clutch Specs Card Included

Out of Package Weight: 109.10Torque Capacity: 1700Tooth Quantity: 152Disc Type Sprung Solid: SprungInput Shaft Diameter: 1-3/8Counterweight Assist: YESInput Spline Quantity: 10Disc Material: Organic/Carbon compositeDisc Type: Segmented faceClutch Bolt Pattern: 22Ring Gear O.D.: 15.625Clutch Disc Diameter: 12.250Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic FrictionCrankshaft Bolt Hole Quantity: 8Flywheel Crank Flange Register: 5.118Flywheel Counter Balance Weight: 0Flywheel Crank Bolt Size: M12 x 1.25 x 32Installed Height: 4.475Release Bearing Included: YesRelease Bearing Style: Flat FacePilot Bushing Included: YesPilot Bushing Material: BearingAlignment Tool Included: YesMounting Hardware Included: YesMade In The USA: Assembled
