Description

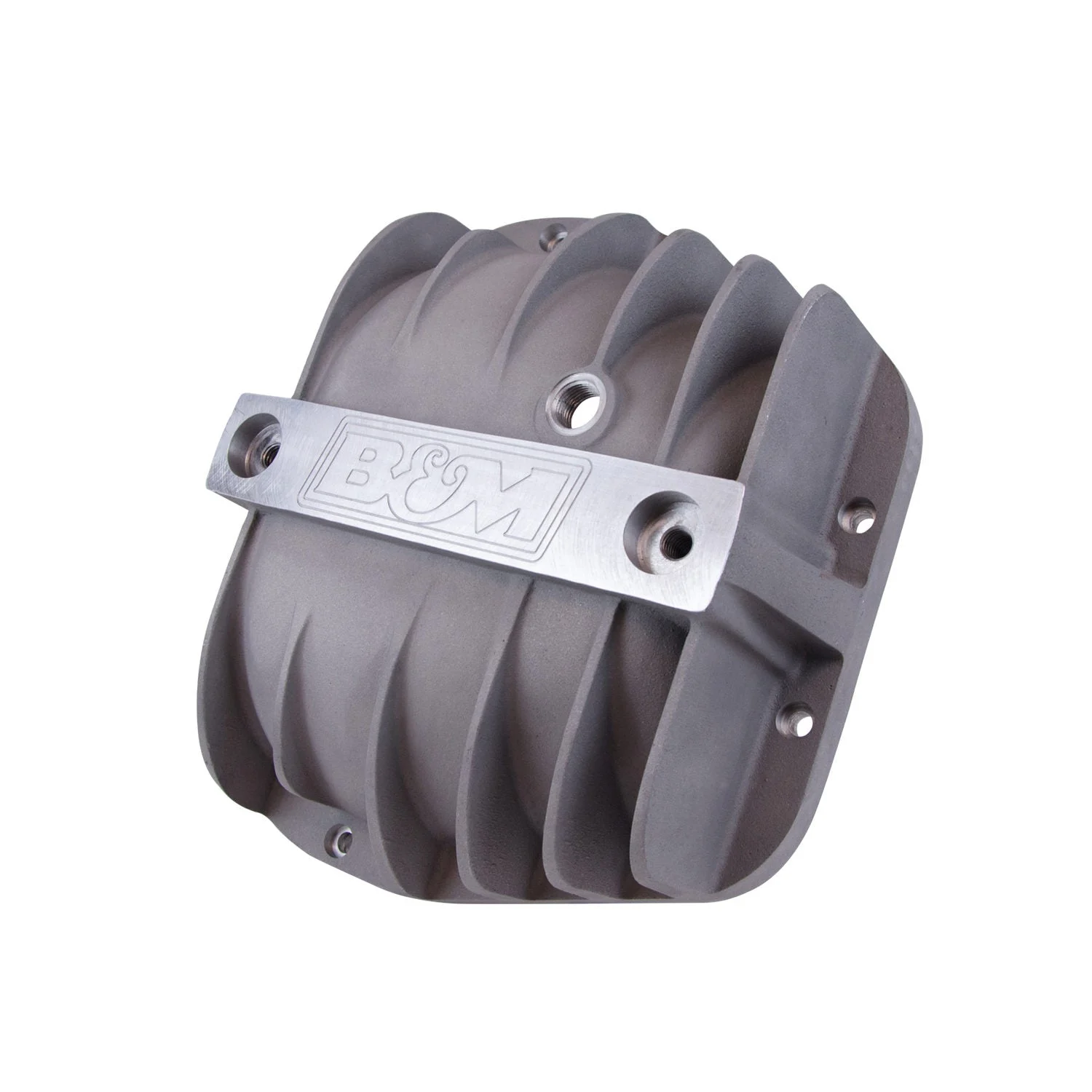

B&M 40298 – Cast Aluminum Differential Cover for Ford 9.75″
B&M Hi-Tek Aluminum Differential Cover for Ford 9.75-inch
Differential Cover; For Use w/Ford 9.75 in.; Incl. Cover/Fill And Drain Plugs/Bolts/Washers/Load Bolts/Nuts;
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications.
- Load Bolts for Additional Bearing Cap Support
- Magnetic Drain Plug for Easy Servicing
- A356.0-T6 Aluminum Construction
- Adds .50-quart Fluid Capacity
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Machined B&M Logo
Additional Fluid Capacity (qts): NoAdditonal Fluid Capacity (qts): NoBolt Count: 12Bolt Pattern: Ford 9.75Bolt Quantity: 12Bolt/Studs Included: YesBrand: B&MCall Out Size (in): 3.28Carrier Main Cap Support: YesCategory: Driveline and AxlesColor/Finish: Raw AluminumDrain Plug Included: YesEmission Code: 5Filler Plug Included: YesFinish: Cast AluminumGasket Included: NoGasket Or Seal Included: NoGaskets Included: NoGrade Type: PerformanceMaterial: A356.0-T6 AluminumMounting Bolt Hole Quantity: 12Mounting Bolts Included: Yespart type: Differential CoverProduct Type: Differential CoverStuds Included: YesSub Category: DifferentialThickness (in): 3.84Warning: California Proposition 65
