B&M 20232 – Flexplate, 168 Tooth 400 CID

Description

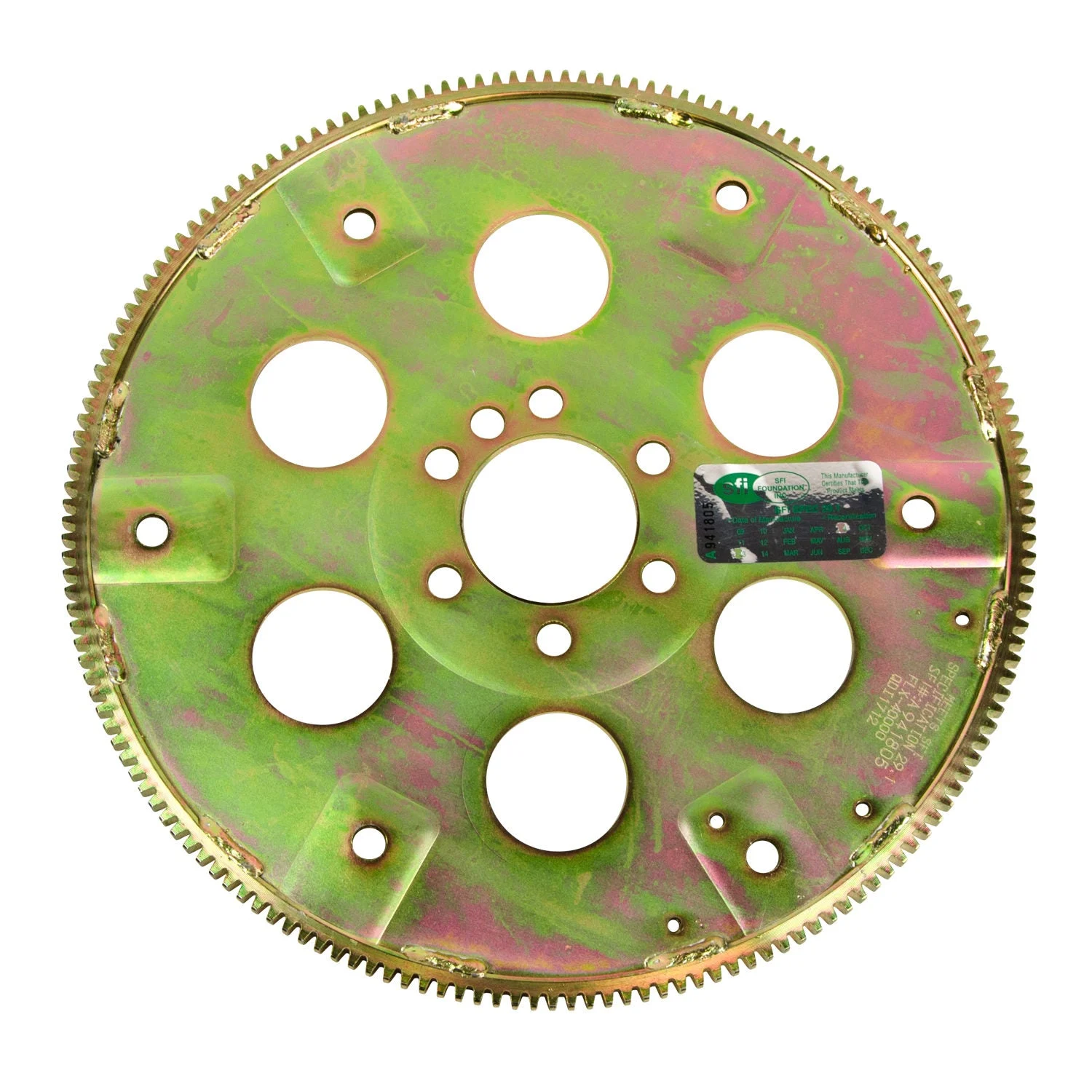

B&M 20232 – Flexplate, 168 Tooth 400 CID

Flexplate – 168 Tooth – SFI 29.1 – Steel – External Balance – Small Block Chevy 400 – Each

Automatic Transmission Flexplate; Standard SFI; External Balance; 168 Tooth; 10.75 in. and 11.5 in. Bolt Circle;

As performance levels increase, an O.E. style flexplate just won’t cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1955-1985 400ci small block chevy V8 engines (externally balanced) with two piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5-inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.

• NHRA and IHRA Legal For All Classes
• Dual Pattern 10.75 and 11.5-Inch
• Includes SFI Certification Sticker
• Ideal For Street Applications
• Zinc Plated Chromate Finish
• To Extreme Duty Racing
• Proven B&M Quality

# of Teeth: 168Application: ChevroletBalance: ExternalBrand: B&MCategory: TransmissionCrankshaft Bolt Hole Count: 6Dual Pattern: NoEmission Code: 5Engine: Chevrolet Small Block Gen IGrade Type: PerformanceIHRA Legal: YesMaterial: SteelMounting Hole Quantity: 6NHRA Legal: YesOutside Diameter (In): 14.1part type: Automatic Transmission FlexplateProduct Type: FlexplatesSFI Approved: YesSFI Certification: 29.1SFI Certification Sticker: IncludedSub Category: FlexplateTooth Quantity: 168Warning: California Proposition 65Weight (lb): 6.25
