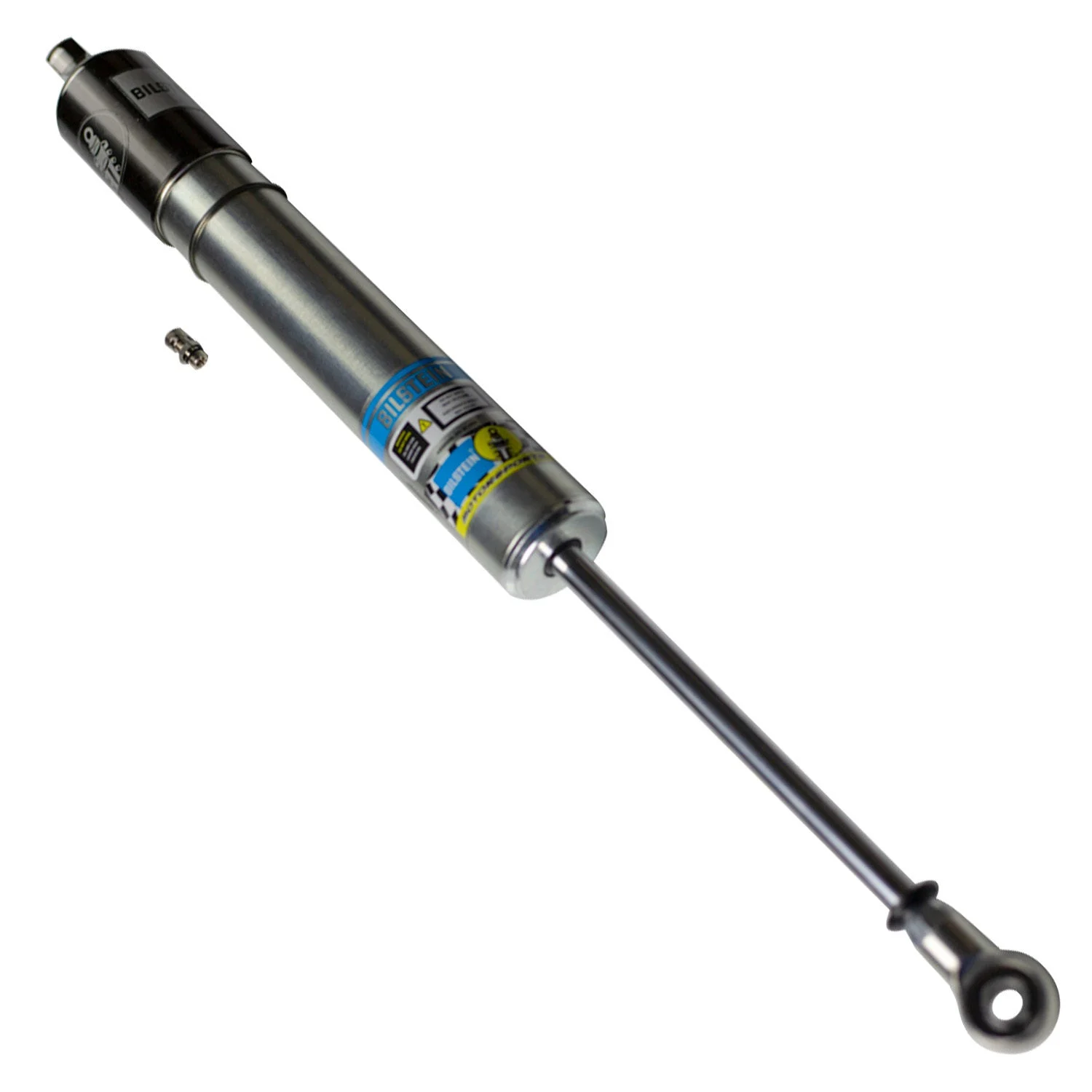

Bilstein 33-298245 – Shock Absorbers

Description

Bilstein 33-298245 – Shock Absorbers

Shock – SNS2 BV Series – Monotube – 15.87 in Compressed – 23.79 in Extended – 1.81 in OD – C12-R2 Valve – Steel – Zinc Plated – Each

46mm Monotube Shock Absorber

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

• Base Valve design delivers ultra low rod pressures and elminates gas preload
• Modular steel body design allows racer rebuildability
• Comes with IMCA-legal plug assembly installed (SNS2 Series)

Adjustable Damping: Non-AdjustableSpring Seat Included: NoCollapsed Length (IN): 15.87Body Design: Smooth Body Screw Top (Non-coilover)Extended Length (MM): 604.4Internal Design: MonotubeUpper Mount Type: 1/2in HeimPartType: Shocks / StrutsStroke/Travel Length (IN): 7.92Series: SNS2 Series (BV)Body Material: SteelStroke/Travel Length (mm): 201.2Collapsed Length (MM): 403.2Boot Included: NoFinish: Zinc PlatedShaft Diameter: 14mmPiston Diameter: 46mmLower Mount Type: 1/2in HeimSegment: MotorsportsSpring Hardware: B4-BOA-0000117Piston Type: DigressiveExtended Length (IN): 23.79
