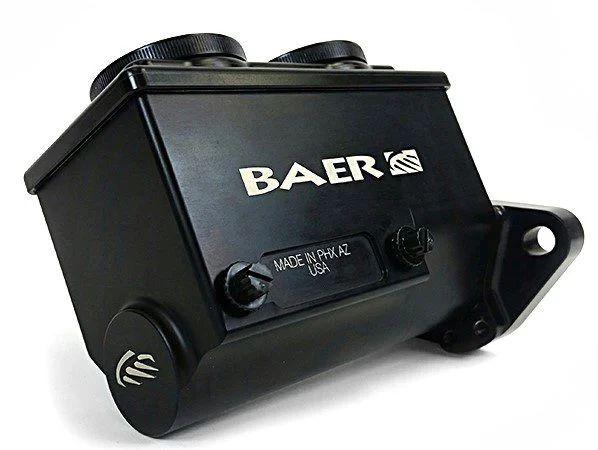

Baer Brakes 6805199LP – ReMaster Master Cylinder 2-Bolt GM/Ford, Black Anodized Finish, Left Port, 0.875″ (7/8″) Bore

Description

Baer Brakes 6805199LP – ReMaster Master Cylinder 2-Bolt GM/Ford, Black Anodized Finish, Left Port, 0.875″ (7/8″) Bore

ReMaster 2-Bolt GM/Ford Master Cyl Assembly, Black, 7/8in bore, Left port.

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 7/8in. Bore, Left Side Ports, Black Anodized, with a 2-bolt mounting flange fitting many Ford and GM applications.

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 7/8″ bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available

• 2-Bolt GM/Ford Firewall Mounting Bracket
• Fully machined 6061 T6 billet aluminum construction
• Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
• Left Side Ports
• Machined and knurled screw-on caps for easy access to fill without spillage
• Anodized Remasters feature laser-etched logos

Area: 0.601Bleeder Hoses Included: NoBleeder Screw Included: NoBleeder Screw Quantity: NoneBleeder Screw Thread Size: N/ABore Size: 7/8Bore Size: 0.875″Bore Type: StraightBox Count: 1Brake Booster Included: NoBrake Pressure Switch Quantity: NoneBrake Pressure Switch Required: NoBrake Pressure Switch(s) Included: NoBrand: Baer BrakesCategory: BrakeConnector For Warning Light: NoDust Boot Included: NoEmission Code: 6Export Description: Brake ComponentsFittings Included: YesFlange Type: 2 Bolt GM/FordGasket Or Seal Included: NoGrade Type: PremiumIncludes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube NutsMaster Cylinder Bore Diameter: 0.875″Master Cylinder Cap Included: YesMaster Cylinder Material: 6061 T6 billet aluminumMaster Cylinder Outlet Port Fittings: Banjo w/o Brass SeatMaster Cylinder Outlet Port Fittings: 3/16″ Inverted Flare and Tube Nuts w/ Brass SeatMaster Cylinder Outlet Port Quantity: 2Master Cylinder Outlet Port Size: 3/8-24Master Cylinder Port Exit: Left sideMounting Bracket Included: YesMounting Hardware Included: NoMounting Hole Diameter: .400Mounting Hole Quantity: 2part type: Brake Master CylinderPedal Rod ID: .475Piston Quantity: 2Port Quantity: 2Primary Bore Diameter: 0.875″Primary Outlet Flare Type: InvertedPrimary Outlet Flare Type: OpenPrimary Outlet Thread Size: 3/8″ – 24Product Line: Master Cylinder AssemblyPush Rod Included: NoQuantity: Sold IndividuallyRemaster Body Color: BlackRemaster Body Finish: AnodizedRemaster Caps Color: BlackRemaster Caps Finish: AnodizedRemaster lid Color: BlackRemaster lid Finish: AnodizedRemovable Seats: YesReservoir Included: YesReservoir Material: 6061 T6 billet aluminumReservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoirReservoir Style: IntegralReservoir Type: DualSecondary Bore Diameter: 0.875″Secondary Outlet Flare Type: InvertedSecondary Outlet Flare Type: OpenSecondary Outlet Thread Size: 3/8″ – 24Sensor Included: NoSeries: ReMasterStroke: 1.1Sub Category: Brake HydraulicsSystem Notes: black anodized,7/8IN bore,left portUniversal Or Specific Fit: UniversalVolume Ratio: 2:1Warning: California Proposition 65
