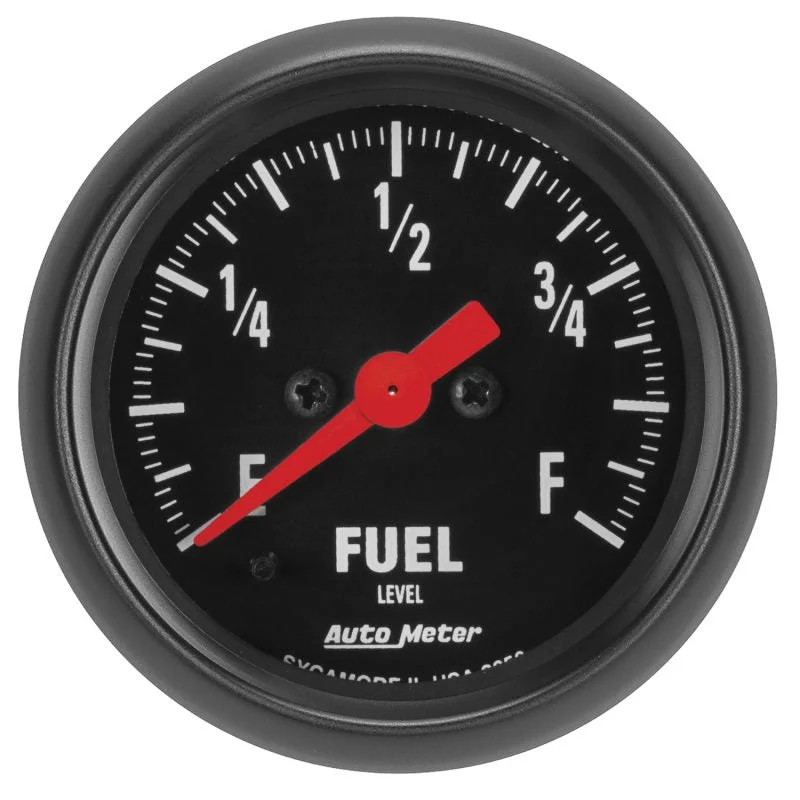

AutoMeter 2656 – Z Series 0-280Ohm 2-1/16in. Programmable Fuel Level Gauge
GAUGE; FUEL LEVEL; 2 1/16in.; 0-280? PROGRAMMABLE; Z-SERIES
Traditional incandescent lighting illuminates around the perimeter of the dial
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our ‘snapshot’ programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- 12 And 16V Compatible
- Works w/Most Pre-1965 GM Senders
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Instructions
- Air-Core Electric Instruments Provide Quick And Accurate Readings
Analog Or Digital: AnalogBezel Color: BlackBezel Style: Super BezelBlock Adapter Included: NoElectric Or Mechanical: ElectricFace Color: BlackFuel Line Adapter Included: NoGauge Adapter Included: NoGauge Size: 2.0625 in.Gauge Size: 52.4mmGauge Type: Fuel LevelHole Size: 0.0625 in.Hole Size: 52.4mmIlluminated: YesLens: Flat ClearLighting Color: White IncandescentLighting Type: IncandescentLiquid Filled: NoMovement Type: Electric Digital Stepper MotorNumber Color: WhiteOuter Bezel Diameter: 2.250 in.Pointer Color: Fluorescent RedSweep: FullVoltage: 8-18 V
