AEM 30-2130-15 – 1 BAR MAP or 15 PSIA Stainless Steel Sensor Kit

Description

AEM 30-2130-15 – 1 BAR MAP or 15 PSIA Stainless Steel Sensor Kit

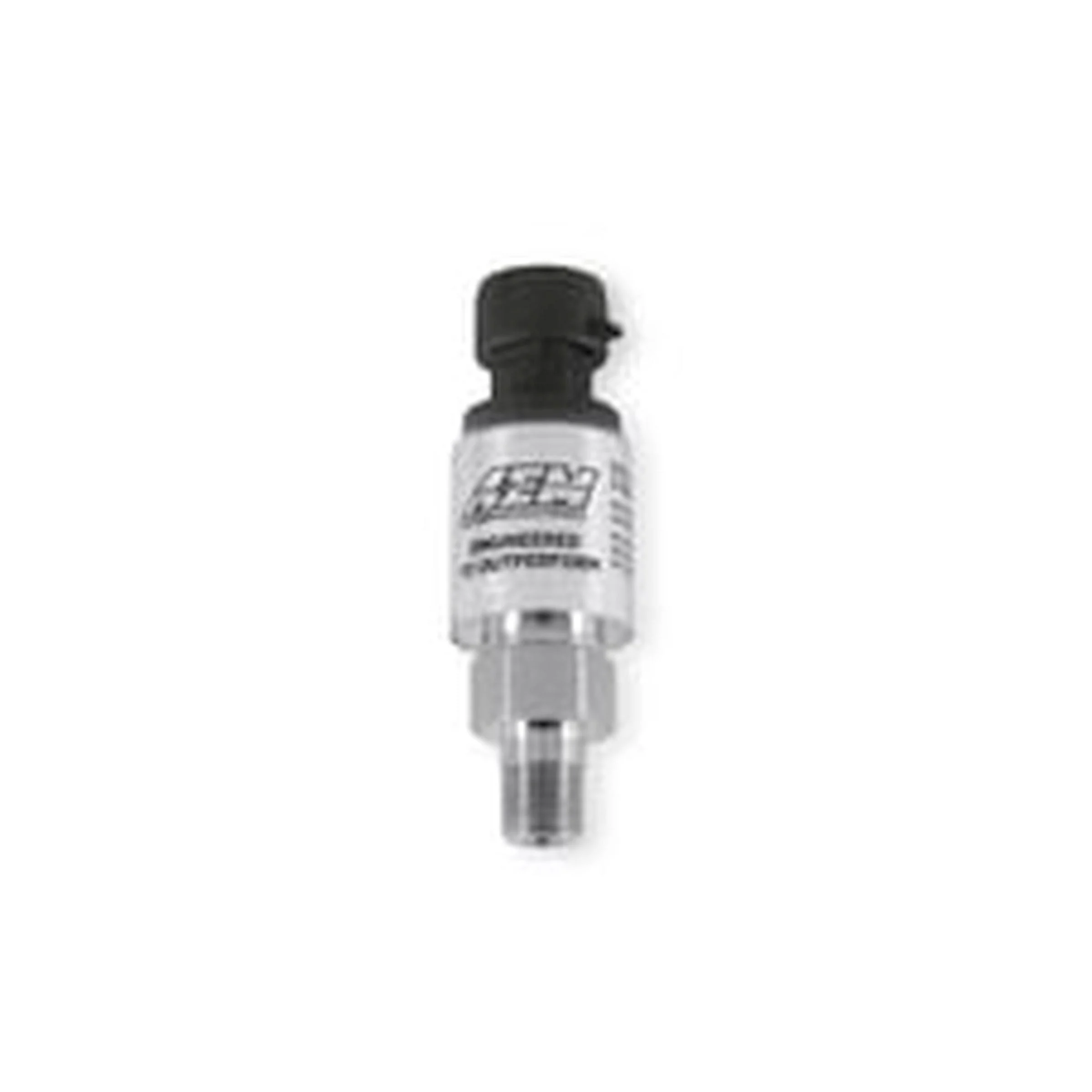

AEM 15 PSIa/1 Bar Stainless Sensor Kit

15 PSIa or 1 Bar Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 15 PSIa or 1 Bar Stainless Sensor, Connector, Pins, 1/8-inch NPT to -4 Adapter & 1/8-inch NPT to 3/16-inch Barb Adapter

AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

• Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
• High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
• Connector and pins included
• Analog Data Scaled in Charts

Brand: AEMCategory: Air and Fuel DeliveryEmission Code: 5Material: Stainless Steelpart type: Manifold Absolute Pressure Sensor KitProduct Type: SensorSub Category: Gaskets and Sealing SystemsWarning: California Proposition 65Warranty: Manufacturer’s 1 Year Warranty
